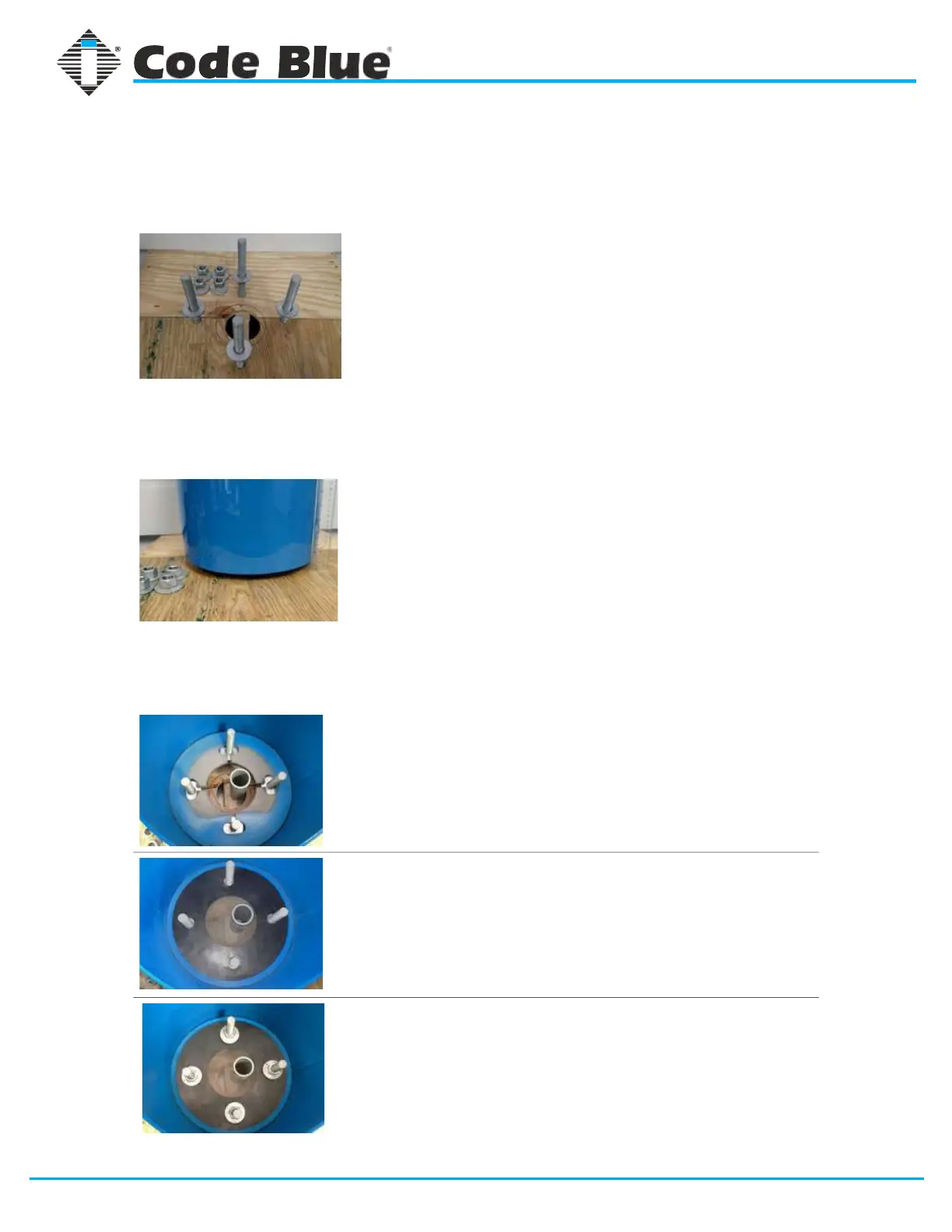

3. SECURE THE UNIT
1. SET THE NUTS AND WASHERS
2. SET UNIT UPRIGHT ON ANCHOR BOLTS
Set the gasket on the bolts and cut a small hole where the
conduit is located.
Stretch the screen tightly around the conduit pipe. Slide the
gasket over the bolts to the base of the unit.
Align the phone plate in the desired direction and lift the
Code Blue unit over the anchor bolts. The unit may be lifted
using the bracket on the inside of the unit.
After the foundation has set, screw one set of nuts, followed
by one set of washers, onto the anchor bolts. Set the nuts so
the lowest washer is about 2½ inches above the concrete at
an even height.
Access the mounting studs through the door on the side
of the unit.
Place the second washer on the anchor bolt and place the nut
on top.
Tighten the mounting nuts onto the anchor bolts. This may be
more convenient if a long socket (extension and universal joint)
is used to tighten the hardware.
Base Gasket Instructions
IMPORTANT: A ½-inch minimum
air gap is required between the
foundation and the unit to
prevent moisture problems.
IMPORTANT: Leveling the
bottom nuts is crucial to leveling
the unit.
A small error will be magnified
after installation.
Fasten
Place the base gasket
Use Access Door to reach mounting studs
Set the Code Blue unit on the anchor bolts:
Screw one set of nuts and washers onto the anchor bolts:
*For an extra-strong seal, a bead of silicone caulk can be put on the gasket from bolt
hole to bolt hole before setting the gasket into place and around the conduit.
CB 1 Series
Administrator Guide
GU-157-FF
Note that the unit weighs approximately 200-400 pounds.
Use appropriate lifting materials and methods to avoid
possible injury and/or damage.
To accomplish this, use a small level and check from front to
back, side to side, & diagonally. These nuts are NOT
adjustable after the unit is in place.
The bottom edge of the Code Blue unit will be 1/2" above
the concrete when in stalled.
page 11 of 31
Code Blue
• 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com
