Code Blue CB 1-s - CB 1-E Low Voltage Exploded View

Code Blue
•
259 Hedcor Street
•
Holland, MI 49423 USA
•
800.205.7186
•
www.codeblue.com
GU-157-AApage 15 of 76
CB 1 Series
Administrator Guide

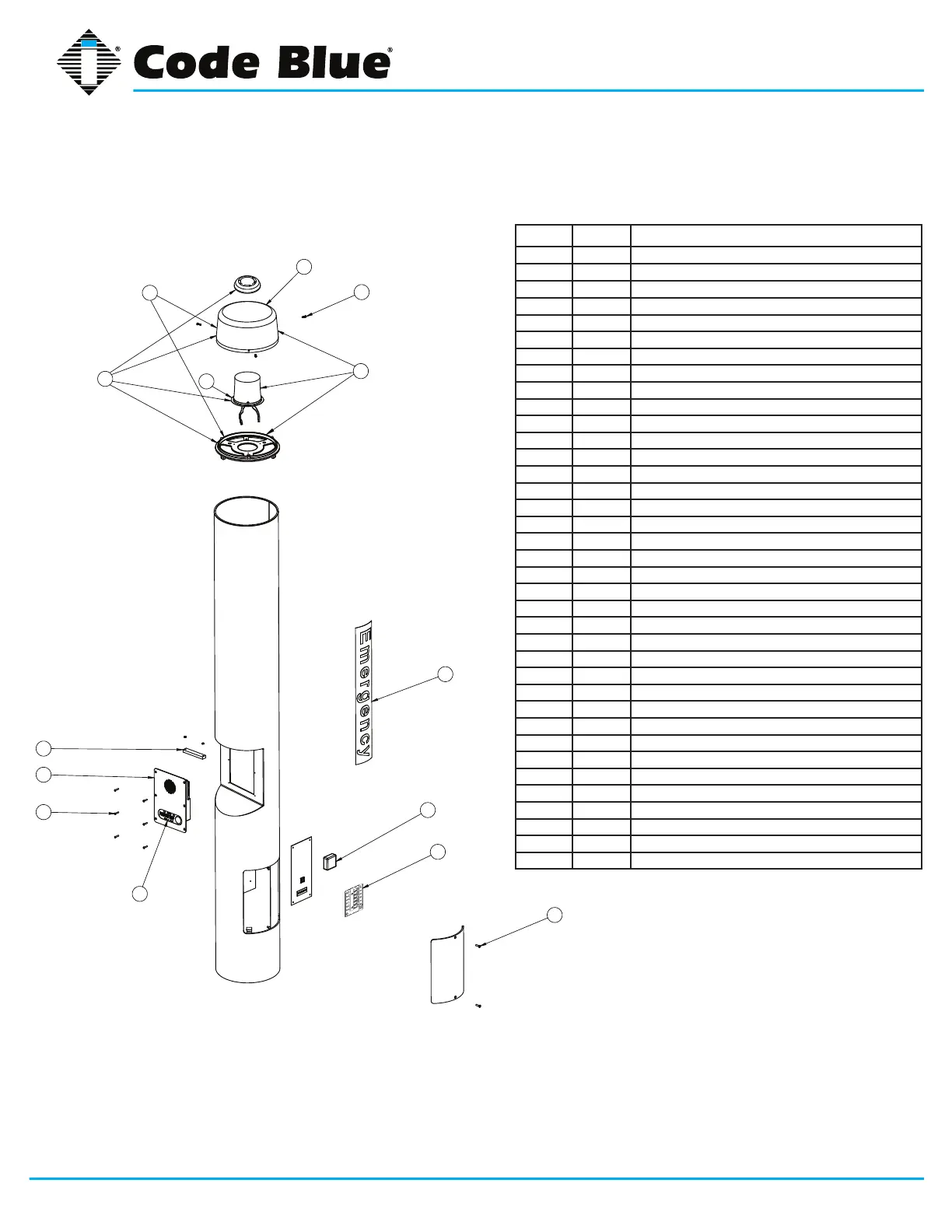

7 CB 1-e Low Voltage Exploded View
DISCLAIMER: Product design and component use subject to change without notice. Product shown reasonably represents current offering and
is intended to assist in component identication. Reference the model and serial number from the unit ID tag and contact manufacturer to conrm
replacement part version and availability.
BALL # PART # DESCRIPTION
1a 40260 Dome Top Kit with Strobe
1b 40165 Dome Top Kit w/o Strobe
1c 40166 Dome Top Kit w/o Strobe & Active Vent
2 41402 Dome Top Lens
3 40159 LED Blue Beacon Strobe
4 41500 Button Head Security Screws (3 pk)
5 CALL Standard / Custom Graphic
6 41471 Analog Surge Suppressor
6 41421 IP Surge Suppressor
7 41548 LED Faceplate Light
8 50001 Single Button IA4100 Analog Phone – PUSH FOR HELP
8 50002 Double Button IA4100 Analog Phone – PUSH FOR HELP
8 50003 Keypad IA4100 Analog Phone – PUSH FOR HELP
8 50004 Single Button IA4100 Analog Phone – EMERGENCY
8 50005 Double Button IA4100 Analog Phone – EMERGENCY
8 50006 Keypad IA4100 Analog Phone – EMERGENCY
8 50007 Single Button IA4100 Analog Phone – EMERGENCY/EMERGENCIA
8 50008 Double Button IA4100 Analog Phone – EMERGENCY/EMERGENCIA
8 50009 Keypad IA4100 Analog Phone – EMERGENCY/EMERGENCIA
8 50101 Single Button IP5000 VoIP Phone – PUSH FOR HELP
8 50102 Double Button IP5000 VoIP Phone – PUSH FOR HELP
8 50103 Keypad IP5000 VoIP Phone – PUSH FOR HELP
8 50104 Single Button IP5000 VoIP Phone – EMERGENCY
8 50105 Double Button IP5000 VoIP Phone – EMERGENCY
8 50106 Keypad IP5000 VoIP Phone – EMERGENCY
8 50107 Single Button IP5000 VoIP Phone – EMERGENCY/EMERGENCIA
8 50108 Double Button IP5000 VoIP Phone – EMERGENCY/EMERGENCIA
8 50109 Keypad IP5000 VoIP Phone – EMERGENCY/EMERGENCIA
9 41544 Faceplate Security Screw 10x24 (6 pk)
10 41700 24V Fuse Block
11 41545 Access Door Security Screws (2 pk)
12 40357 Bezel Assembly IA4100 Analog Phone – PUSH FOR HELP
12 40407 Bezel Assembly IA4100 Analog Phone – EMERGENCY
12 40408 Bezel Assembly IA4100 Analog Phone – EMERGENCY/EMERGENCIA
12 40313 Bezel Assembly IP5000 VoIP Phone – PUSH FOR HELP
12 40405 Bezel Assembly IP5000 VoIP Phone – EMERGENCY
12 40406 Bezel Assembly IP5000 VoIP Phone – EMERGENCY/EMERGENCIA
2
4
1a
3
5
7
8
9
12
6
10
11
1b
1c
