Code Blue CB 1-s - CB 1-e and CB 1-s 120 V Standard Wiring (prior to 03;2013) (with Hammond Transformer)

Code Blue
•
259 Hedcor Street
•
Holland, MI 49423 USA
•
800.205.7186
•
www.codeblue.com
GU-157-AApage 61 of 76
CB 1 Series
Administrator Guide

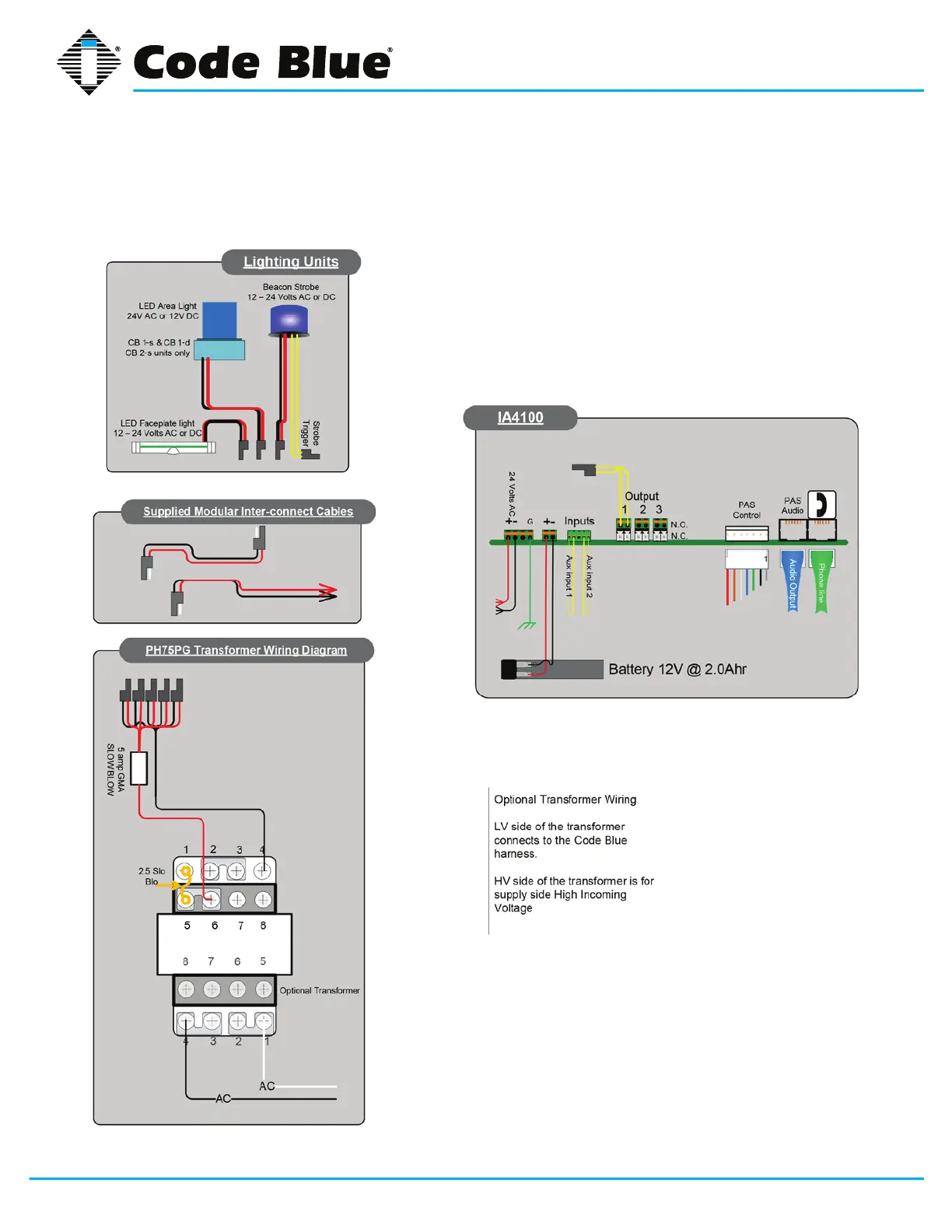

34 CB 1-e and CB 1-s 120V Standard Wiring (prior to 03/2013)
(with Hammond Transformer)
Product wiring diagram shown reasonably represents current offering and is intended to assist in component identication and service. Earlier product
production may have different components and wiring connections. Reference the model and serial number from the unit ID tag and contact
manufacturer to conrm replacement part version and availability.
