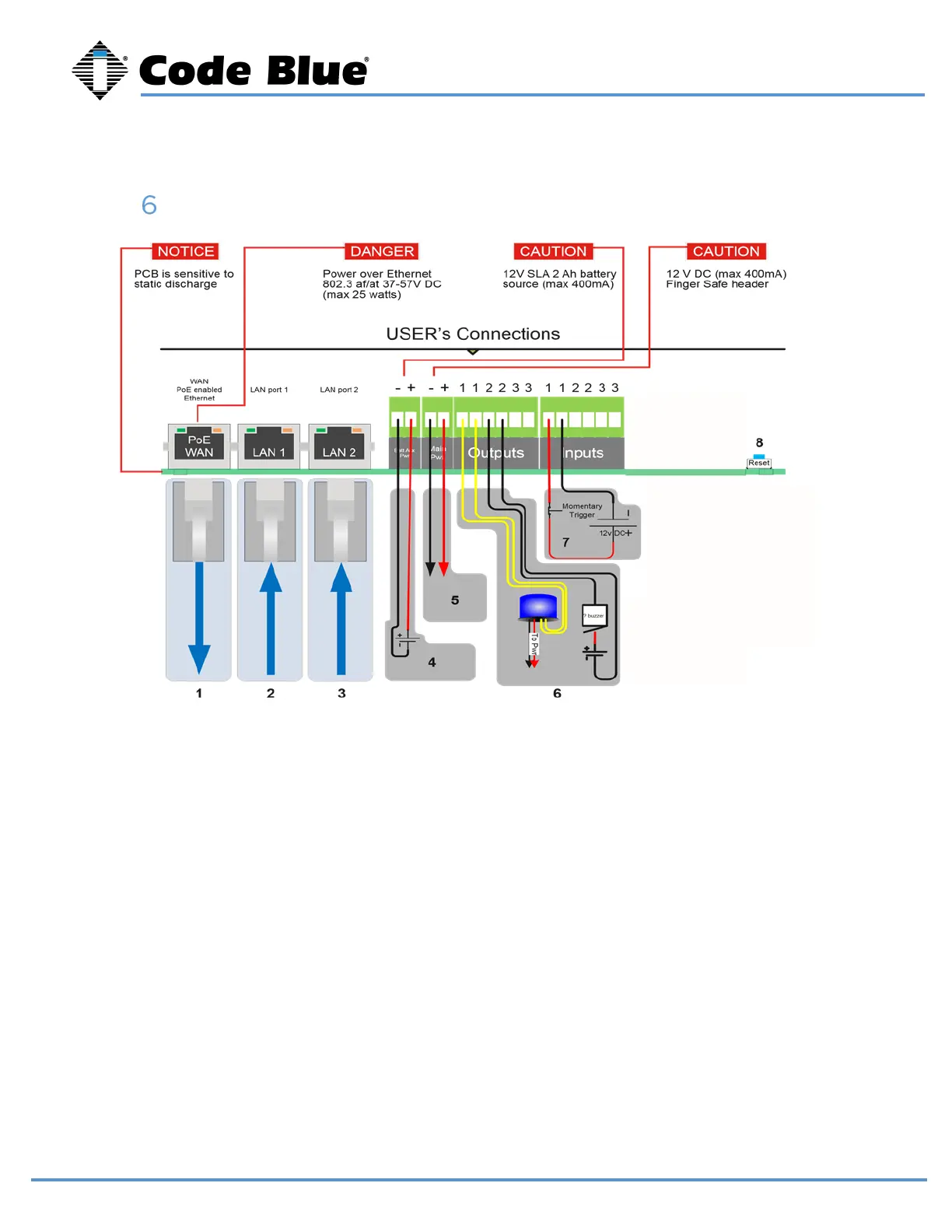

Wiring Diagrams
1 - Cat 5e - Connect to Switch (100 Mb)
2 - Cat 5e - Connect to Peripheral (100 Mb) 3 - Cat 5e - Connect to Peripheral (100 Mb)
4 - Optional 12V battery
5 - 12V DC power
6 - Aux outputs (3)
• The auxiliary outputs are Normally Open and can be triggered in your action script to close. Duration is
defined in your action script.
7 - Aux inputs (3)
• The auxiliary inputs are Normally Open and are triggered by voltage. The voltage range is 9 to 32V AC or
DC with current protection of 1.25 Amps.
8 - Factory Reset Switch
• With power connected to LS2000, hold down this reset switch for 12 seconds and then release. The unit
will reboot. All settings will be lost.
