Code Reader CR1100 User Manual

9

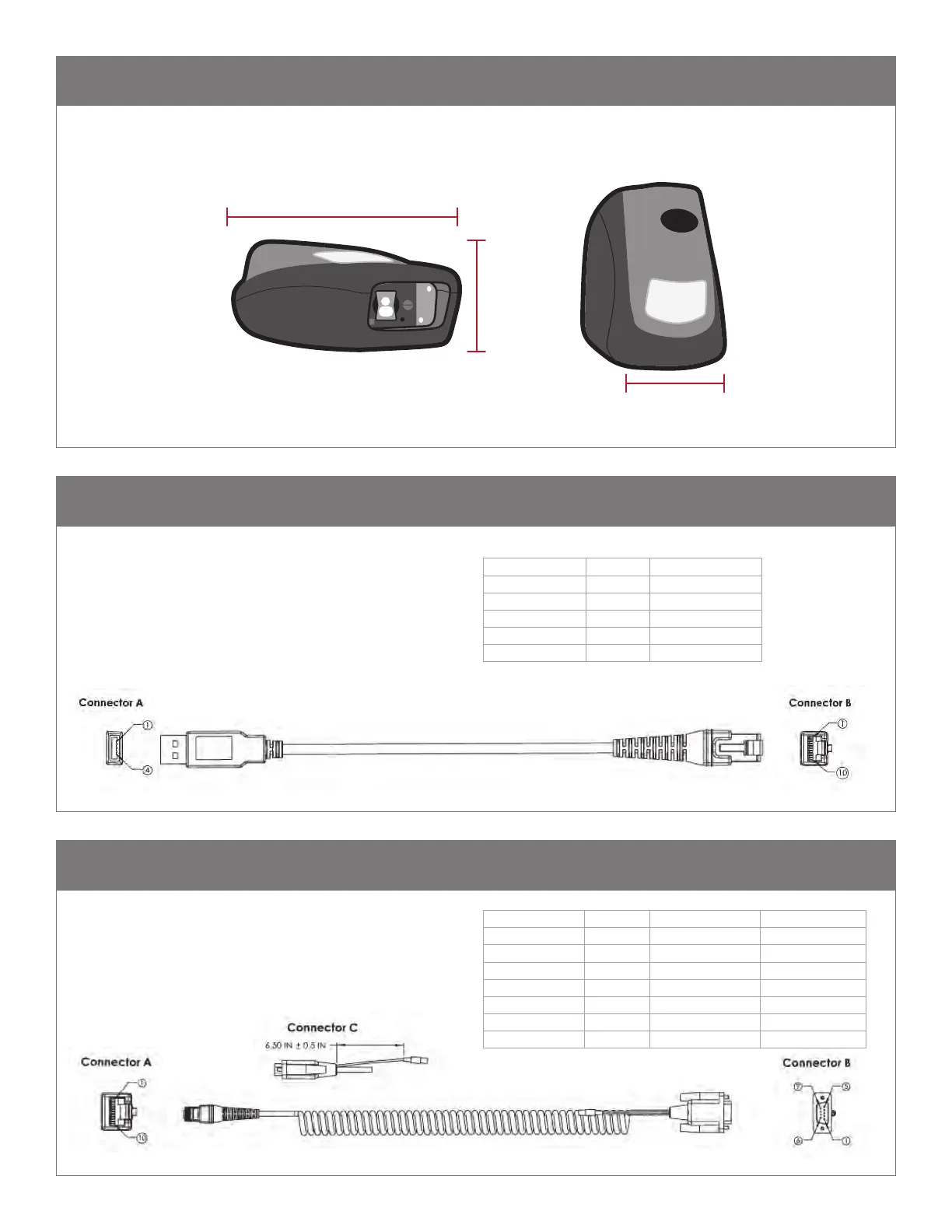

12.0 - CR1100 Overall Dimensions
13.0 - USB Cable Example with Pinouts
14.0 - RS232 Cable Example with Pinouts
NOTES:
1. Maximum Voltage Tolerance = 5V +/- 10%.
2. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONNECTOR A CONNECTOR B
NOTES:
1. Maximum Voltage Tolerance = 5V +/- 10%.
2. Caution: Exceeding the maximum voltage will void
manufacturer warranty.
CONNECTOR A NAME CONNECTOR B
1 VIN
9
2 D- 2
3 D+ 3
4 GND 10
SHELL SHIELD N/C
CONNECTOR A NAME CONNECTOR B CONNECTOR C
1 VIN
9
TIP
4 TX 2
5 RTS 8
6 RX 3
7 CTS 7
10 GND 5 RING
N/C SHIELD SHELL
67.5 mm
(2.7”)
29.7 mm
(1.2”)
52.5 mm
(2.1”)
D032078 _02 CR1100 User Manual
