Codex G500 Series - Installing the Cutter

33
5 Accessories
G500 Series
Accessories
033

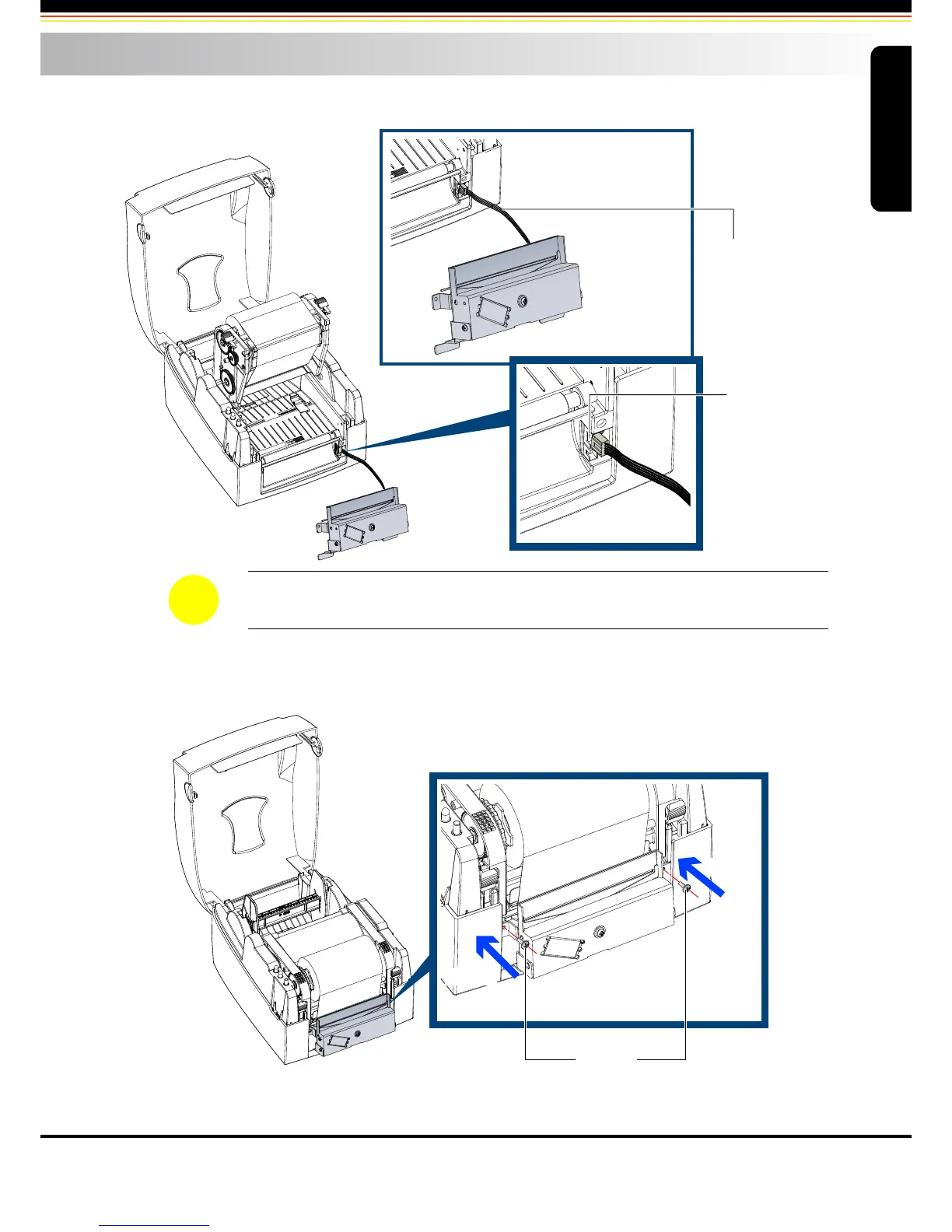

CONNECT CABLE OF
CUTTER MODULE
UPPER JACK

The printer must be switched off, or the motherboard may be damaged!

There are 2 jacks : the lower jack is for the dispenser, the upper jack for the cutter.
NOTICE
Secure the cutter using the screws provided for this purpose.
Locking
Locking
SCREWS
