COE S7 - Service Points

Service
13

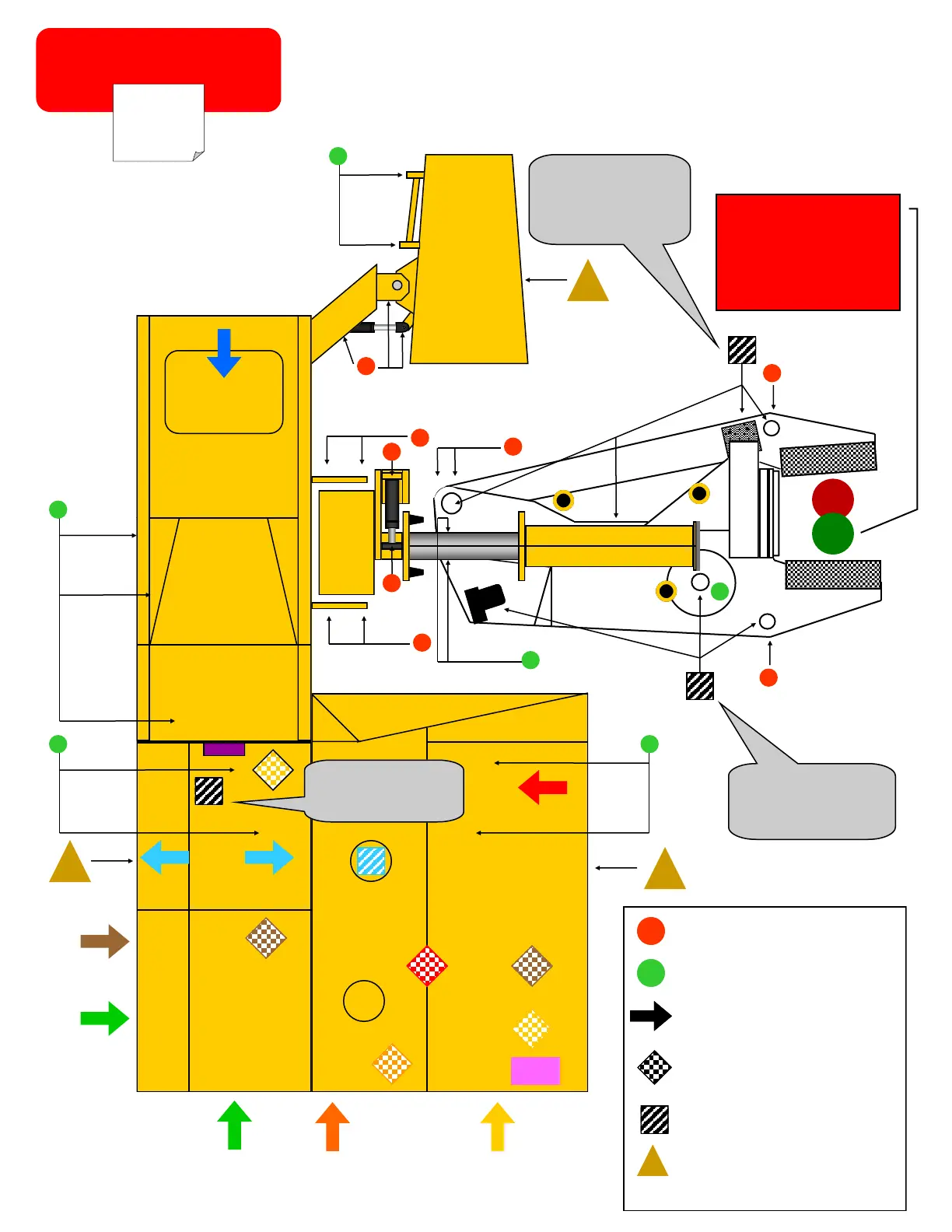

Service points
DAILY LUBE POINT
YEARLY 90W OIL
DAILY SERVICE ITEMS
(REFER TO COLOR CHART)
WEEKLY LUBE POINT
FILTERS (250 HOURS)
(REFER TO COLOR CHART)
INSPECTION POINT
INSPECTION POINTS
-CLAMP CYL PIN
-WEAR PADS
-HOSES AND CLAMPS
-REAR ARM PIN
INSPECTION POINT
-AIR CLEANER INTAKE
PRE-CLEANER.
INSPECTION POINTS
-CLAMP CYL PINS
-E-PIN BOLT / NUT
-MOTOR BOLTS / NUTS
Place tree to stationary
side of head. Tree
placed to clamp arm
side will cause failure
to mounting systems
& mast pin.
YES
NO
