32 LB
22 LB
8 LB

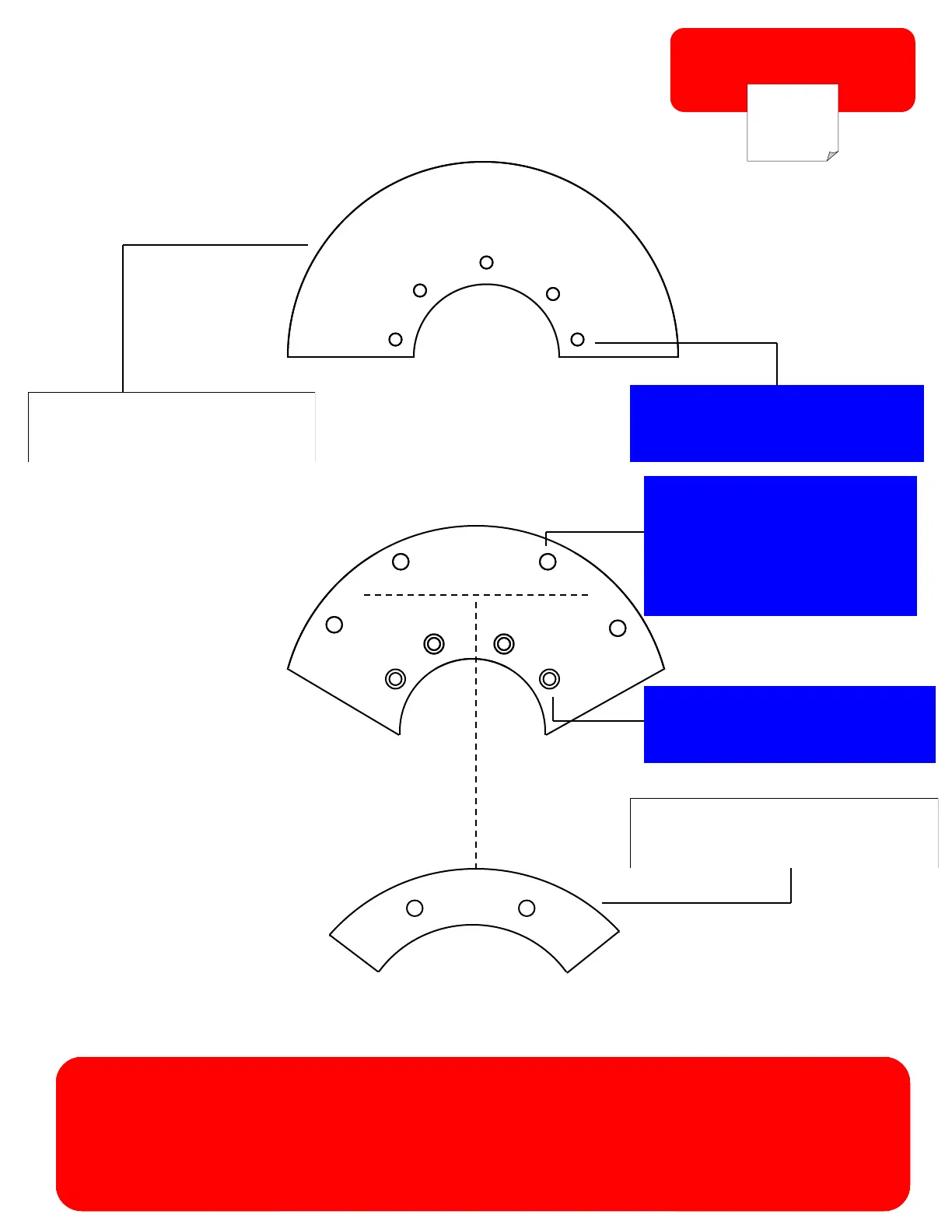

Walnut Pattern Weights HD
FOR BEST SHAKE RESULTS USE 6
BAR WEIGHTS (3 PER STACK). USE
LESS TO REDUCE SHAKE.
5/8” X 4” N.C. RECESSED
ALAN CAP SCREW TO
CONNECT TO ENERGY WHEEL
TOP WHEEL
PART # 13513 1/2”
PART # 13514 1”
PART # 13512
PART # 13511
5/8” X 1 1/2” N.C. RECESSED
ALAN CAP SCREW TO
CONNECT TO ENERGY WHEEL
5/8” X 4” N.C. RECESSED
ALAN CAP SCREW TO
CONNECT 3 TH7-LW-AW8
BARS TO WEIGHT . SUB-
TRACT 1” FOR EACH BAR
NOT USED OF BOLT
LENGTH
FOR BEST SHAKE RESULTS USE 3
WEIGHTS. USE LESS TO REDUCE
SHAKE.
LOWER WHEEL
NOTE: WHEN CHANGING WEIGHTS ALWAYS DISCARD USED BOLTS AND IN-
STALL NEW BOLTS. USE LOCTITE BLUE THREADLOCKER PART# M-LT08531.
FAILURE TO USE NEW BOLTS WILL RESULT IN BACKING OUT AND SHEARING
OF BOLTS CAUSING EXTREME DAMAGE.
32 LB
22 LB
8 LB
HD Pattern
FOR BEST SHAKE RESULTS USE 6
BAR WEIGHTS (3 PER STACK). USE
LESS TO REDUCE SHAKE.
5/8” X 4” N.C. RECESSED
ALAN CAP SCREW TO
CONNECT TO ENERGY WHEEL
TOP WHEEL
PART # 13513 1/2”
PART # 13514 1”
PART # 13512
PART # 13511
5/8” X 1 1/2” N.C. RECESSED
ALAN CAP SCREW TO
CONNECT TO ENERGY WHEEL
5/8” X 4” N.C. RECESSED
ALAN CAP SCREW TO
CONNECT 3 TH7-LW-AW8
BARS TO WEIGHT . SUB-
TRACT 1” FOR EACH BAR
NOT USED OF BOLT
FOR BEST SHAKE RESULTS USE 3
WEIGHTS. USE LESS TO REDUCE
SHAKE.
Service
20
LOWER WHEEL
NOTE: WHEN CHANGING WEIGHTS ALWAYS DISCARD USED BOLTS AND IN-
STALL NEW BOLTS. USE LOCTITE BLUE THREADLOCKER PART# M-LT08531.
FAILURE TO USE NEW BOLTS WILL RESULT IN BACKING OUT AND SHEARING
OF BOLTS CAUSING EXTREME DAMAGE.
