Annex 2: Elements configuration Lyon / C-Lyon / Zafir
1. Introduction
The steps necessary to configure the Analogue Control Panel LYON are given below.
The analogue system includes the following elements:
Analogue detectors
. Optical sensor A30XHA
Heat sensor A30XTA
Multi-sensor A30XHTCO
Analogue key PUCAY
Master module KMAY
Relay modules
1 relay MDA1Y
2 relays MDA2Y
Technical signals module MSTAY
Relay and Technical signal module MYOA
Loop isolator base KABY
Analogue siren SIRAY / SIRAYL

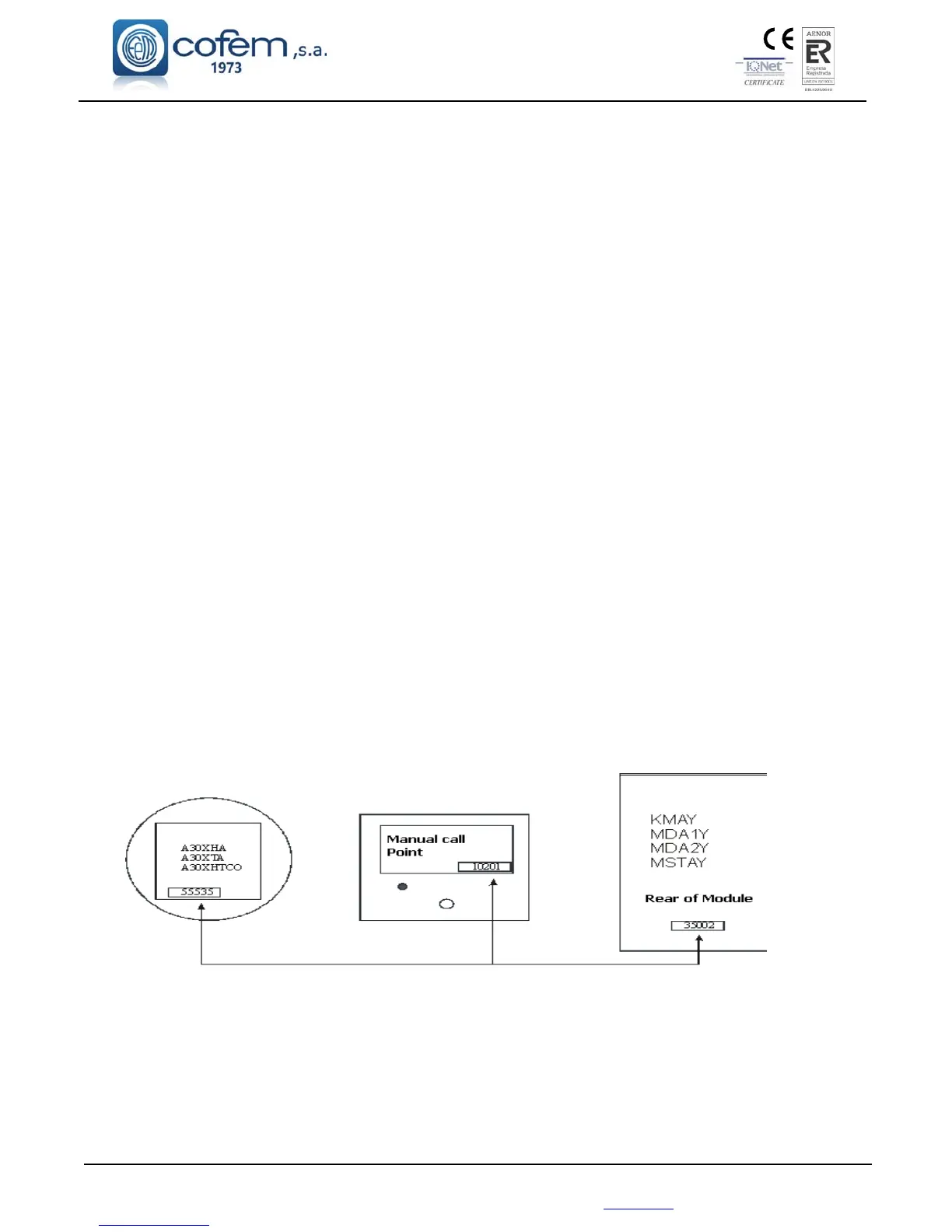

Each of these elements has a programming label. This number is assigned at the factory. When an element search
operation is conducted using the control unit, it finds all the loop elements, memorising the type of element and the
assigned programming number.
The basic purpose of this procedure is that, by conducting this search, all these numbers can be passed to the
control unit memory and for them to be assigned to the loop where the search was conducted.
NOTE: Before assigning a point, it is highly advisable to obtain the programming lists with all the data.
2. Keypad access
If the keypad has not been enabled, the only key that will work is the stop BUZZER button (in the event of any
new incidents, the buzzer will be activated again). The LYON / / C-LYON / ZAFIR system provides several
different access levels to the various internal functions. The first level of access controls the use of the keypad.
When any of the keys on the control panel are pressed, an access code will be requested:
