l MISSED_TRIGGER
l READY
l TRIGGER_OUT

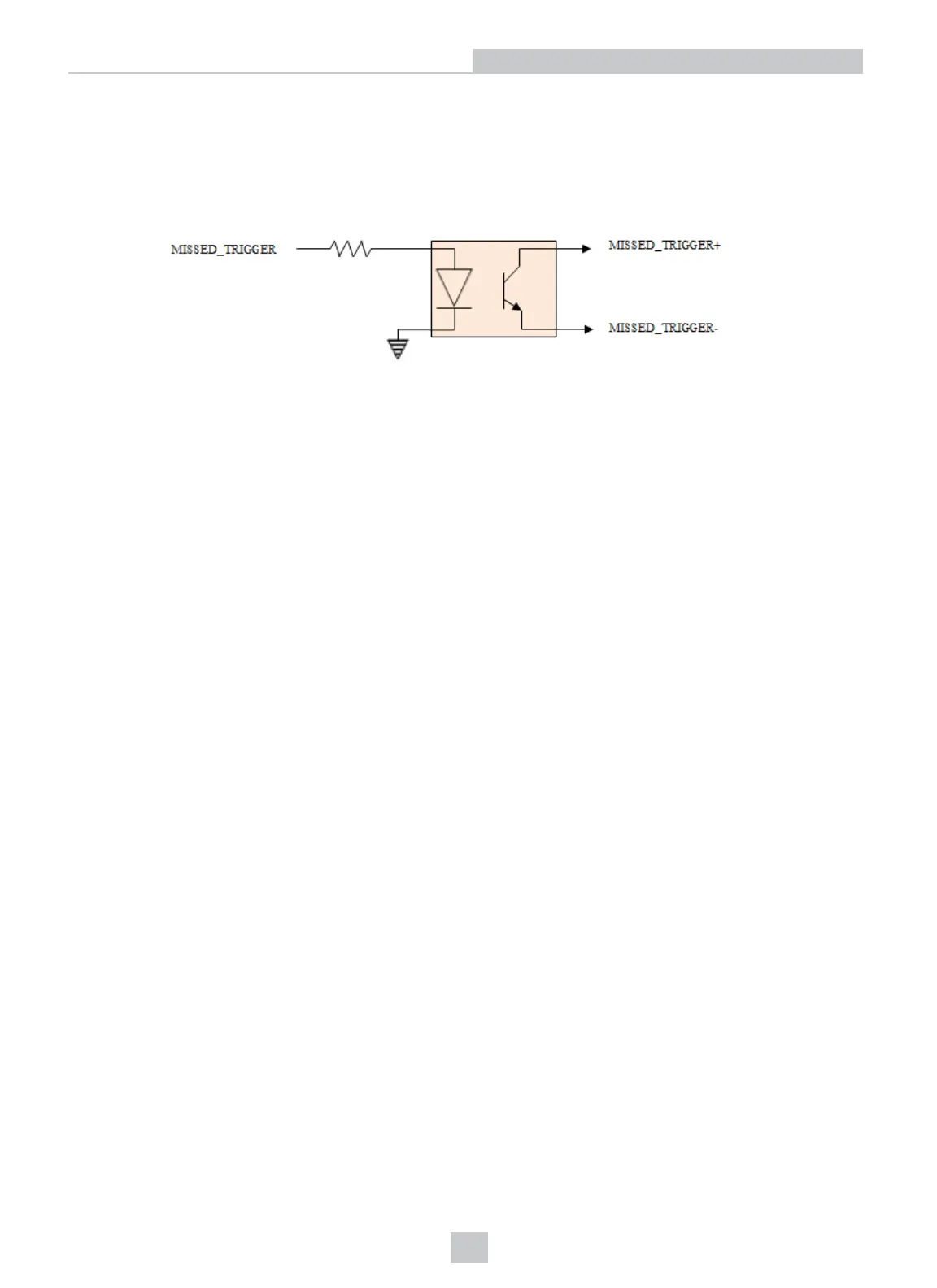

For example, the following figure contains a block diagram for the MISSED_TRIGGER signal:
Wiring for sourcing output:
l MISSED_TRIGGER+ to load power (e.g. PLC +24VDC)
l MISSED_TRIGGER- to load (e.g. PLC sinking input ) and return (e.g. PLC ground)
Wiring for sinking output:
l MISSED_TRIGGER+ to load (e.g. PLC sourcing input ) and power (e.g. +24VDC)
l MISSED_TRIGGER- to load return power (e.g. PLC ground)
15
I/O Cable
