Cognex 3D-A5000 Series User Manual

Specification 3D-A5005 3D-A5030 3D-A5060
Resolution X, Y = 42 - 44 µm X, Y = 195 - 199 µm X, Y = 361 - 454
µm
Clearance Distance (mm)
The minimum distance required before the
sensor will detect 3D features.
300 1465 1400
Near Field of View (mm x mm)
The size of the area closest to the sensor where
3D features can be detected. Features above
the Near Field of View will not be captured by
the sensor.
60 x 44 280 x 210 520 x 390
Measurement Range (mm)
The total distance in which the sensor can
detect 3D features.
12 80 400
Far Field of View (mm x mm)
The size of the area farthest from the sensor
where 3D features can be detected. Features
below the Far Field of View will not be captured
by the sensor.
65 x 46 285 x 215 645 x 490

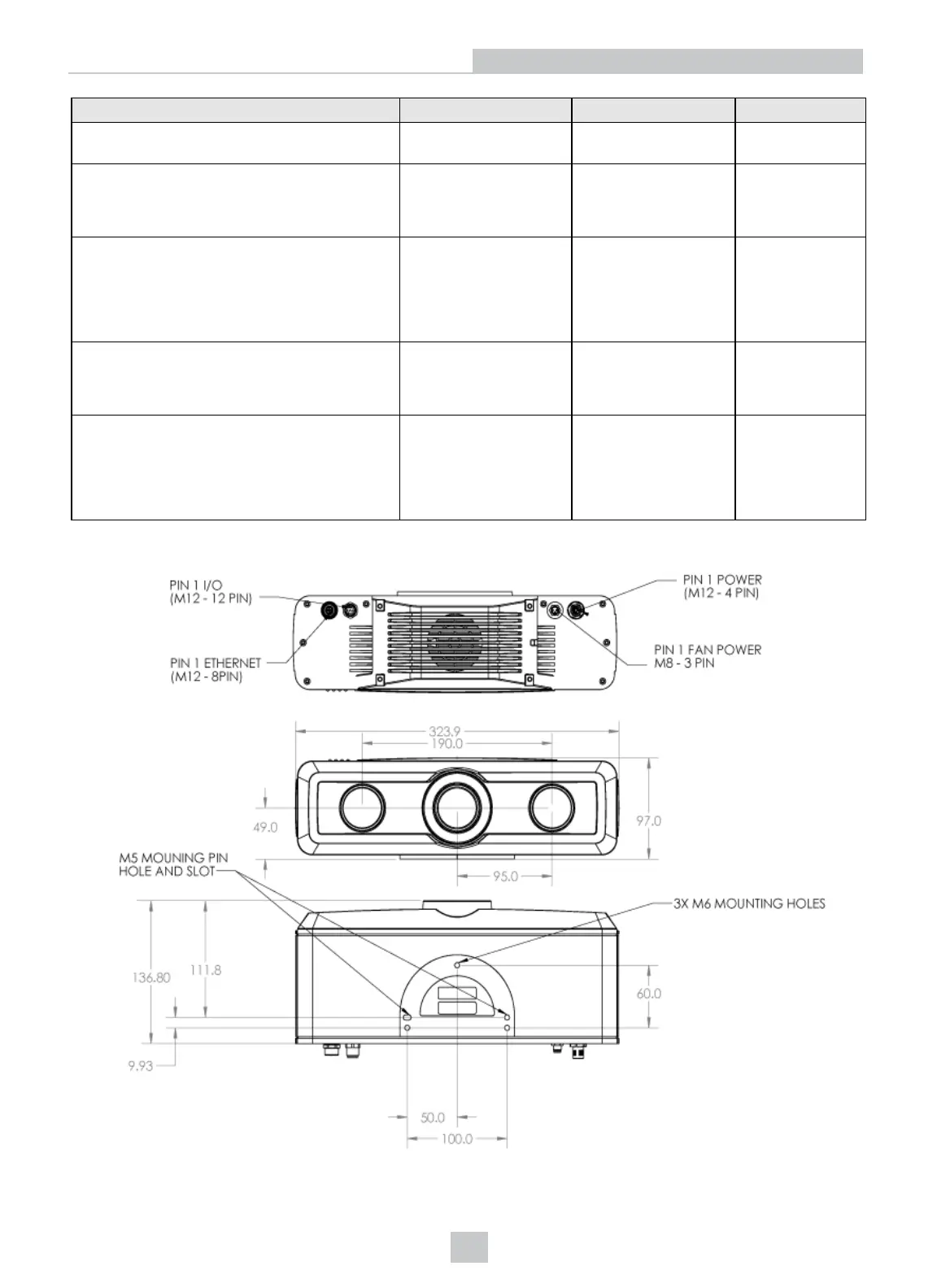

Refer to the following diagram for physical dimensions of the 3D-A5000 sensor:
7
Cognex 3D-A5000 Sensors

Cognex 3D-A5000 Series Specifications
