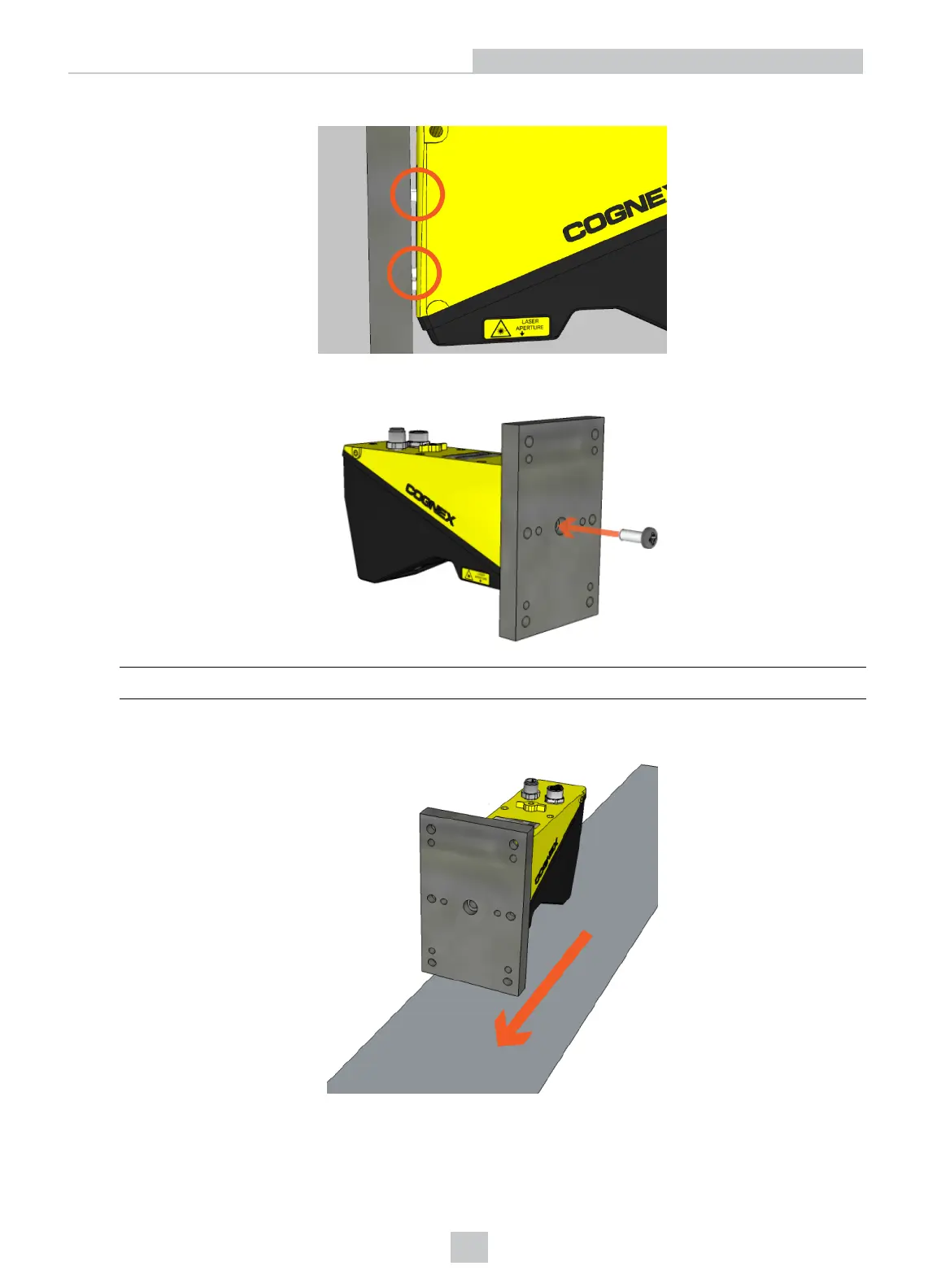

2. Confirm the three plane pins make contact with the mounting plate.
3. Insert and tighten the M6 screw.
CAUTION: Observe torque limit:2.2 Nm (19 Lb-In).
4. Mount the plate perpendicular to the direction of moment of the objects to be inspected.
24
Mounting the Sensor
