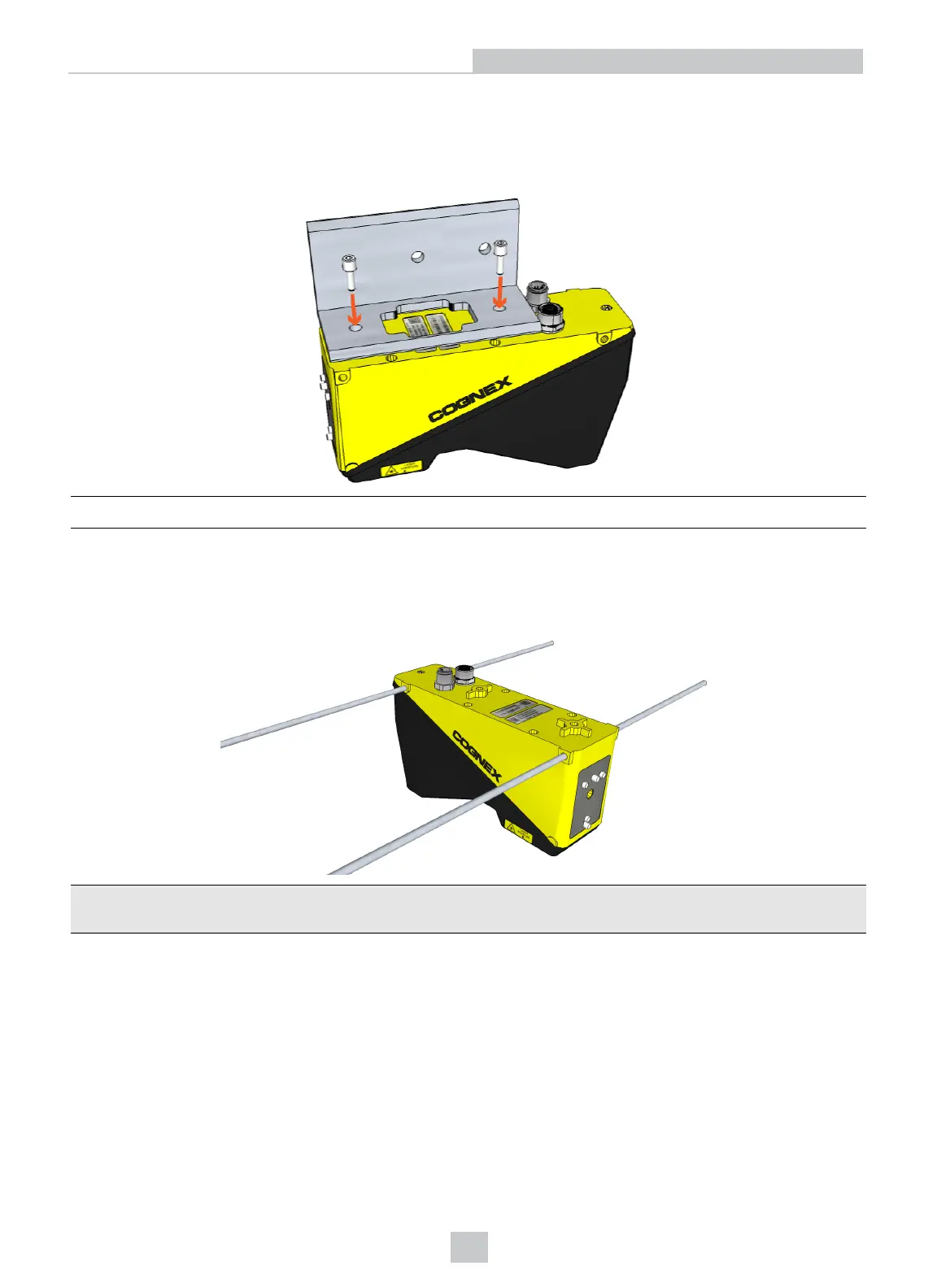

Top Mounting
Align the top-mounting bracket (DS-BKT-000)with the mounting bosses on top of the device, and attach the bracket with
the M6 screws.
CAUTION: Observe torque limit:2.2 Nm (19 Lb-In).
Through-Body Mounting
To mount your sensor using the through-body mounting option, insert rods or appropriate hardware through the sensor
unit and use a clamping mechanism to prevent the sensor from shifting during operation.
Note: For mounting multiple sensors with a coplanar view, Cognex recommends using mounting plates (part
number DS-MPHA-00) for the highest accuracy.
25
Mounting the Sensor
To Next Page
