cod. 3542C090 - Rev. 01 - 09/2022
CADI

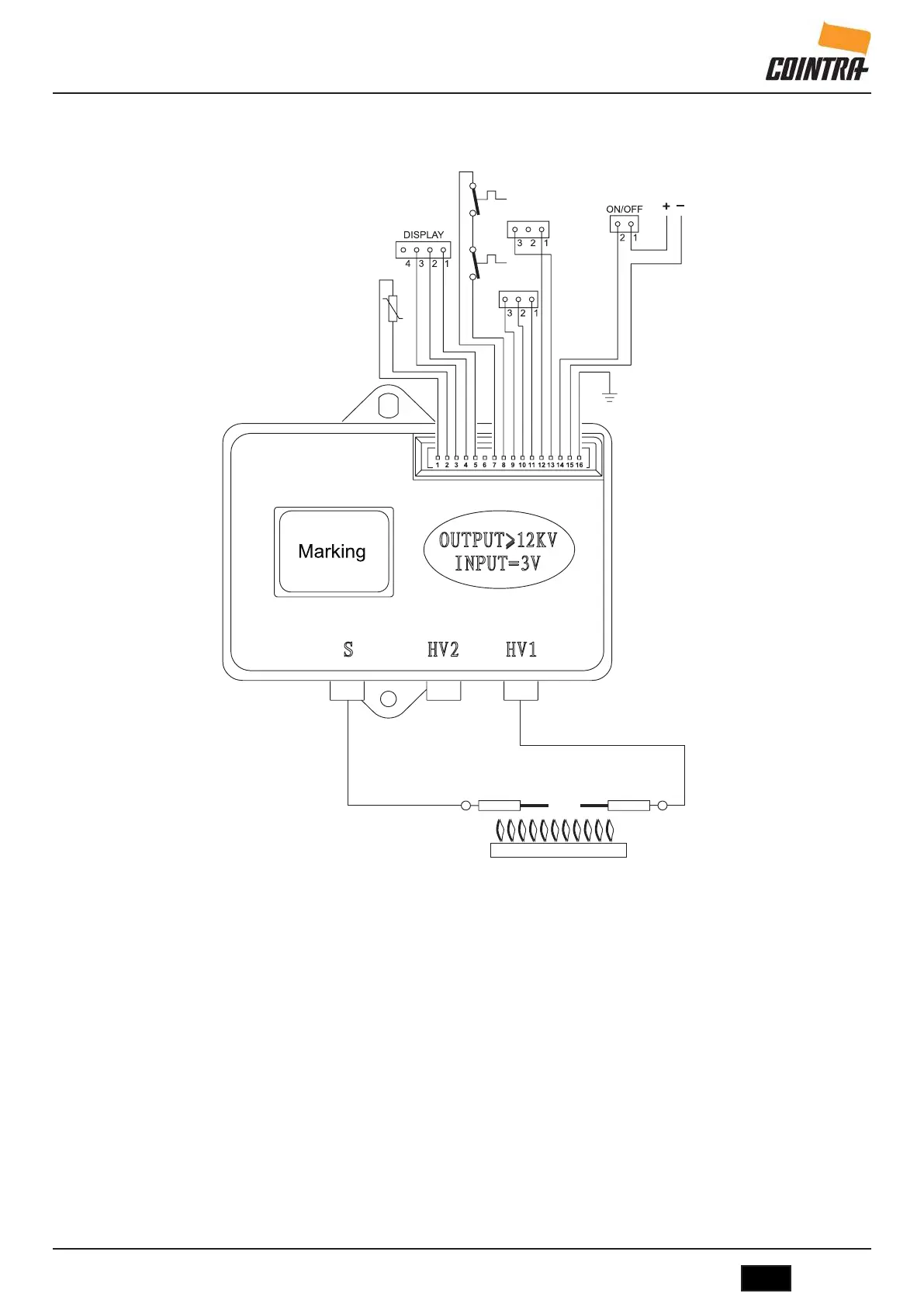

4.5 Wiring diagram









g. 26 -
Key
8 Gas valve
9 Detection electrode
10 Ignition electrode
11 DHW temperature sensor
12 Safety thermostat
13 Contact fume thermostat
15 Batteries
16 Electronic controller
17 Flow switch
