14
During operation, some items on the screen will indicate level or failure mode by changing colors.
Green is normal, yellow or orange is a warning and red needs immediate attention.

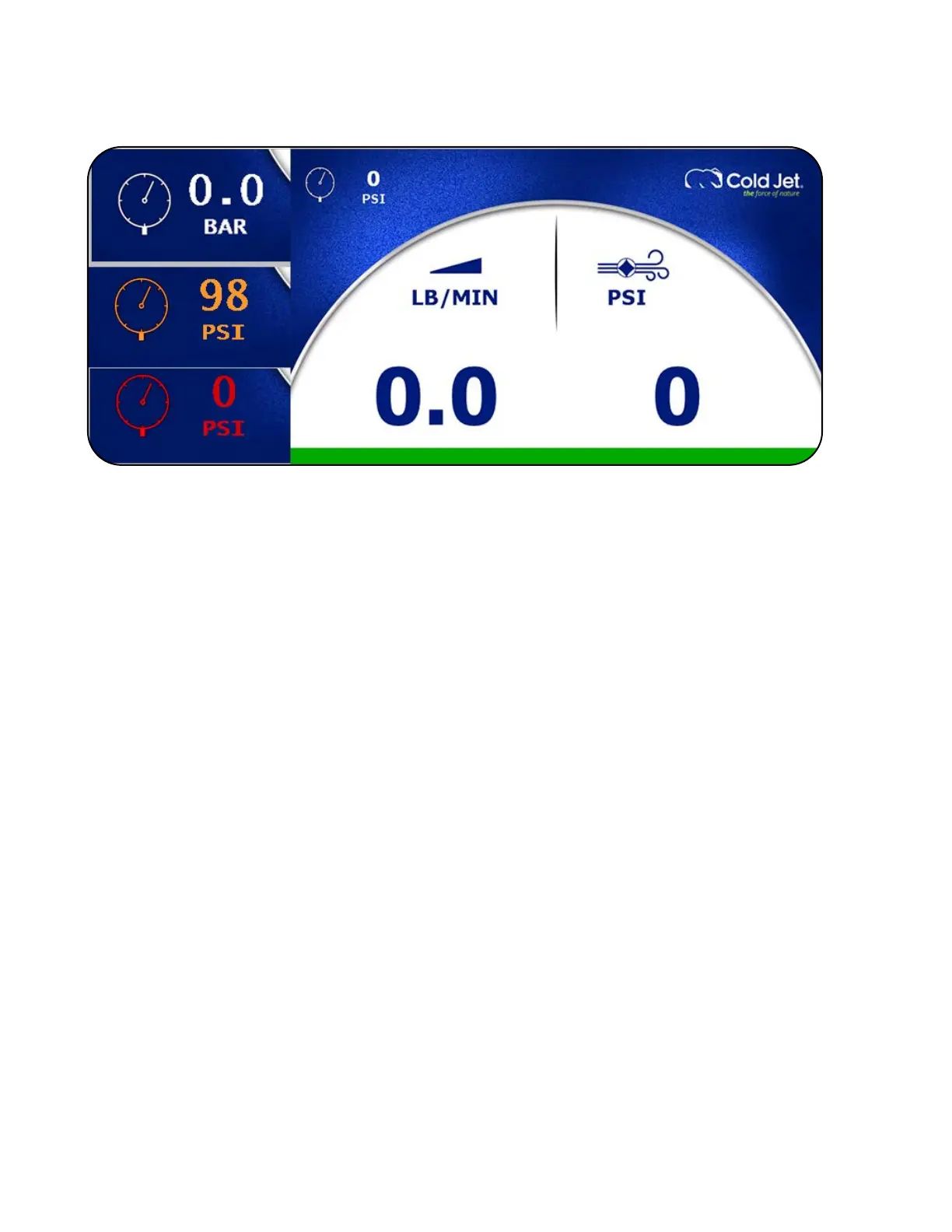

Figure 4: Numeric Color Indicator
Numbers change state too. White is normal, orange is warning, and red needs immediate attention.
