23
OM.MC.20160506

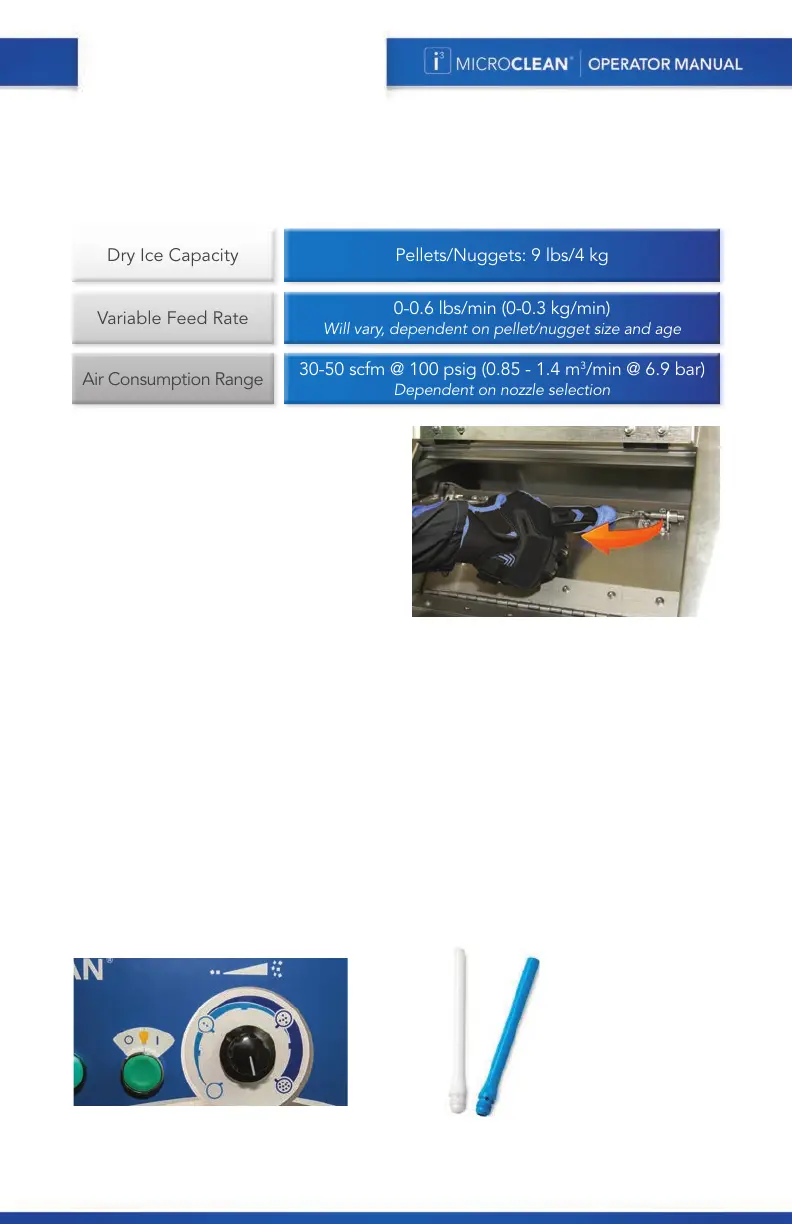

APPENDIX B:
PELLET & NUGGET SHAVING
Dry Ice Capacity Pellets/Nuggets: 9 lbs/4 kg
Variable Feed Rate
0-0.6 lbs/min (0-0.3 kg/min)
Will vary, dependent on pellet/nugget size and age
Air Consumption Range
30-50 scfm @ 100 psig (0.85 - 1.4 m
3
/min @ 6.9 bar)
Dependent on nozzle selection
Dry Ice Capacity Pellets/Nuggets: 9 lbs/4 kg
Variable Feed Rate
0-0.6 lbs/min (0-0.3 kg/min)
Will vary, dependent on pellet/nugget size and age
Air Consumption Range
30-50 scfm @ 100 psig (0.85 - 1.4 m
3
/min @ 6.9 bar)
Dependent on nozzle selection
SPECIFICATIONS
All specifications remain the same with the pellet & nugget shaving option,
except for those mentioned below.
PELLET/NUGGET DOOR
A secondary door prevents free media
from falling out of the hopper during
loading and use.
• After loading the dry ice media, verify
that the pellet/nugget door can be closed
and latched. Note: the system will not
operate with the pellet/nugget door ajar.
flip latch to open & close door
FEED RATE DIAL
With the unique and varying sizes of pellet and nugget media that can be utilized in
the i
3
MicroClean, the feed rate indicator has been simplified to showcase minimal to
maximum feed.
• For your specific application and media setup, begin with minimal feed and increase
the dial until you find what setting works best.
• The Pellet and Nugget Shaving kit is designed to work with nozzles that are 30 scfm
(0.85 m
3
/min) or greater. It is not advised for nozzles less than 30 scfm. Check with
your sales or service representative concerning nozzles that operate at 30 scfm (0.85
m
3
/min) or greater to understand the best performance setup for your system.
simplified feed rate indicator
nozzles must be
30 scfm or greater
