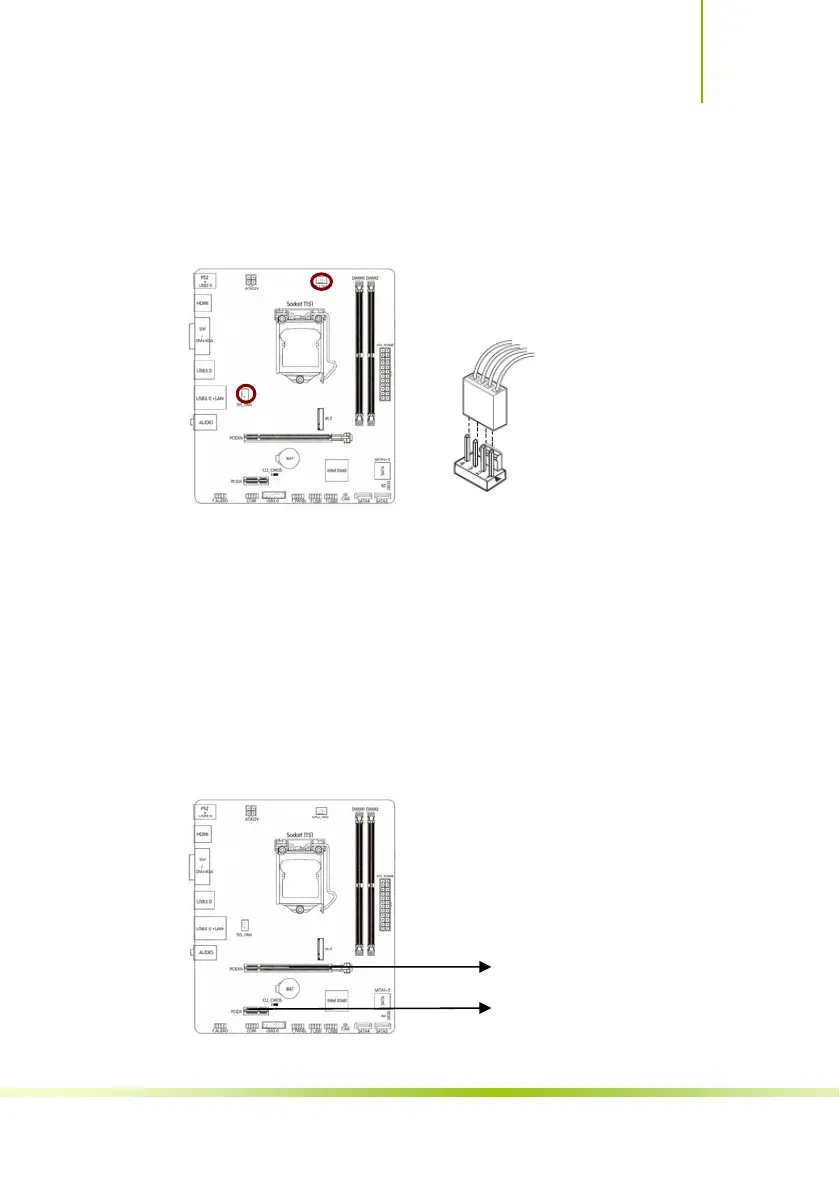

CPU、Chassis and Power fan connectors (CPU_FAN,SYS_FAN)
Connect the fan cables to the fan connectors on the motherboard, making
sure that the black wire of each cable matches the ground pin of the
connector.
PCI Express 3.0 x1 Slot
The PCI Express3.0 x1 slots that are designed to accommodate less
bandwidth-intensive cards, such as a modem or LAN card.
PCI Express 3.0 x16 Slots
The PCI Express3.0 x16 slot is reserved for a graphics or video card. The
bandwidth of the x16 slot is up to 4GB/sec(8GB/sec concurrent).
When installing a PCI Express x16 card, be sure the retention clip snaps and
locks the card into place. If the card is not seated properly, it could cause a
short across the pins. Secure the card’s metal bracket to the chassis back
panel with the screw used to hold the blank cover.
PCI Express 3.0 x16 Slot
PCI Express 3.0 x1 Slot
12
Ｈａｒｄｗａｒｅ Ｉｎｓｔａｌｌａｔｉｏｎ
