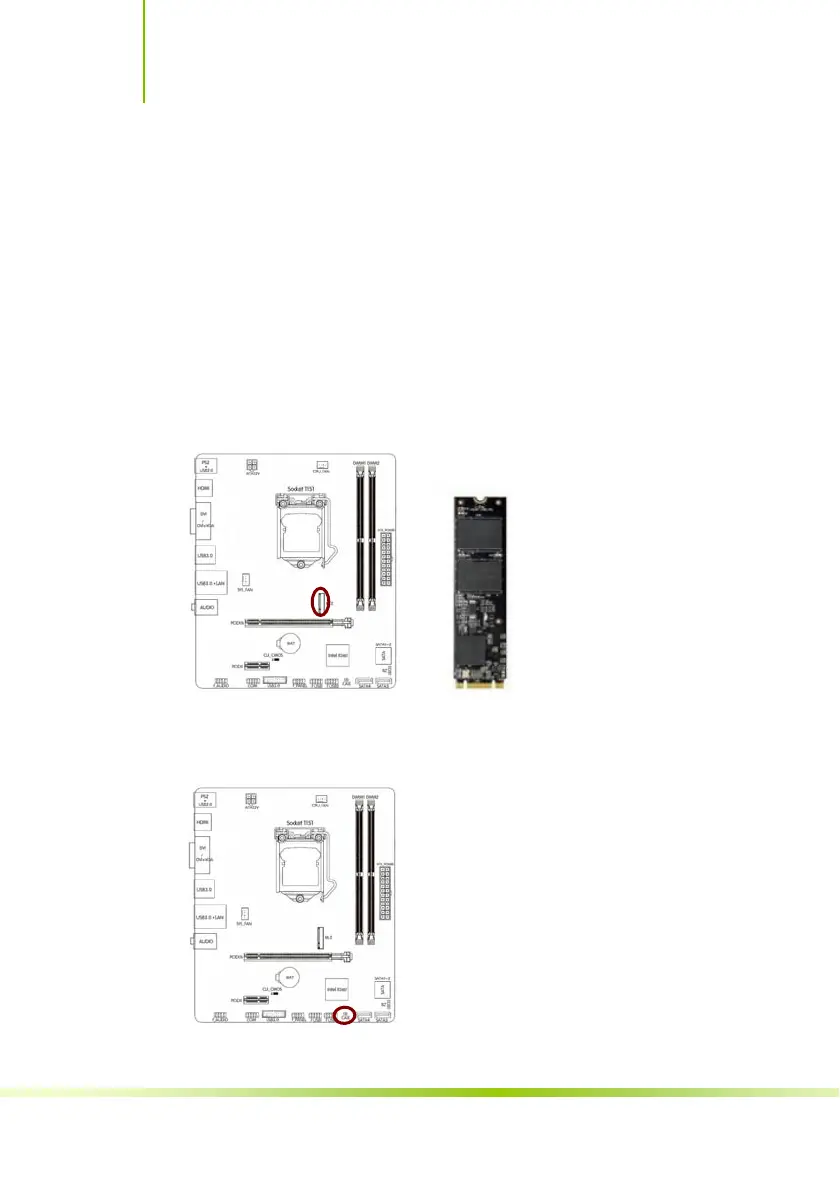

M.2 Slot
The motherboard has one M.2 slot，supports PCI-e X4 and SATA channel
M.2 SSD, the data transfer rate can be as high as 32Gb/s.
BATTLE-AX B360M-E PRO V21 supports Intel OPTANE.
Please install M.2 SSD correctly in the slot following the following steps:
1. please use a screwdriver to remove the screws and studs in order, and
then lock the stud first when the actual M.2 SSD is found to be suitable for
the screw hole position.
2. insert the M.2 SSD into the slot in a inclined angle.
3. press M.2 SSD, then lock the screw.
Debug header: CASE
This Debug header is for Debug serial devices
13
BATTLE-AX B360M-E PRO V21/BATTLE-AX B360M-HD PRO V21
