3 Design overview and features
3.1 Appliance overview

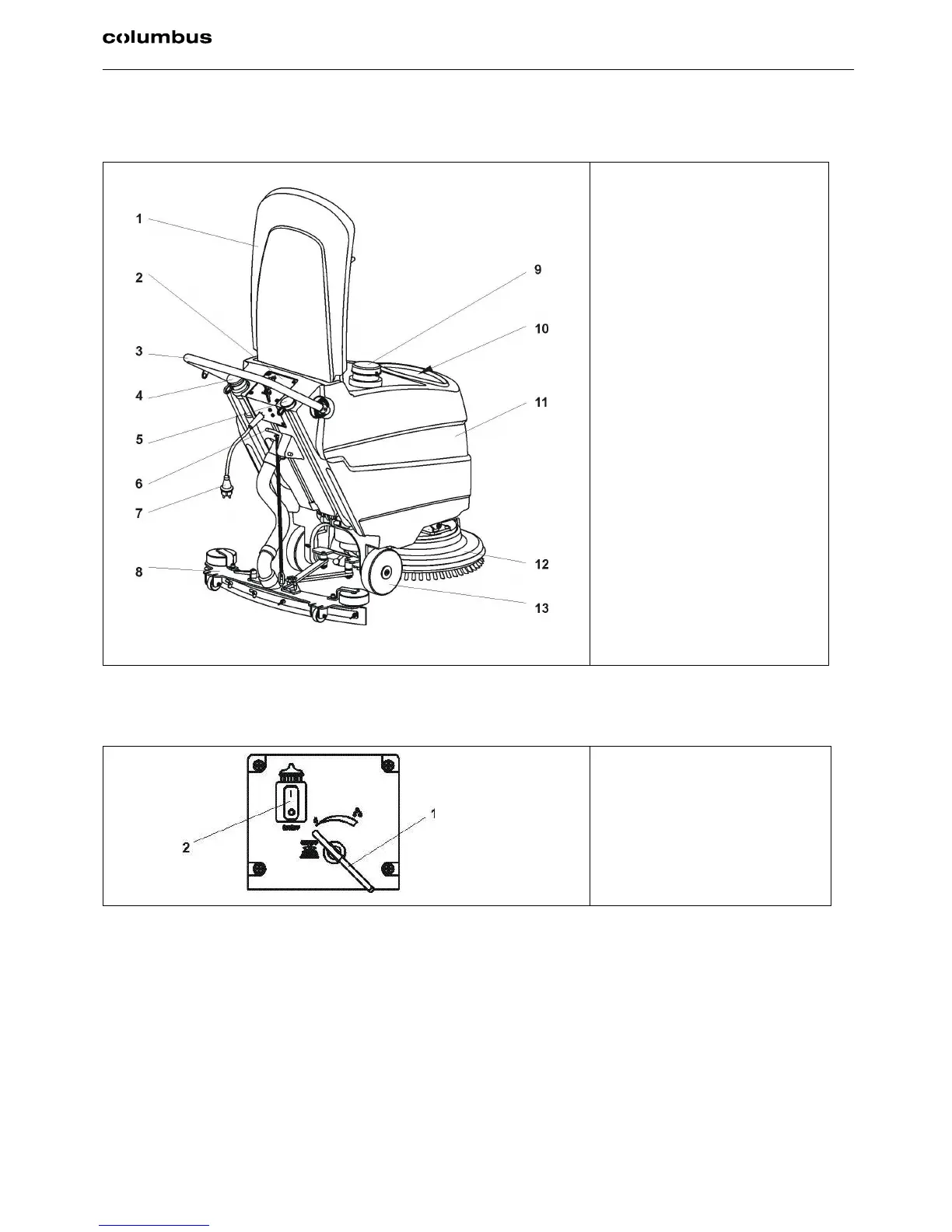

Appliance overview
1 Tank lid
2 Control panel
3 Handle
4 Recovery tank drainage
hose
5 Solution tank drainage
hose
6 Squeegee control lever
7 Connecting cable
8 Squeegee
9 Air filter
10 Filling compartment for
fresh water/cleaning
solution
11 Tank
12 Brush unit
13 Wheel
Fig. 1 Appliance overview
3.2 Control panel
Control panel
1 Rotary knob
Brush unit/
Dosage of cleaning fluid
2 Suction unit switch
Fig.2 Control panel
