CALOR 40 Manual Page 13 (total 27) COMAC CAL s.r.o.

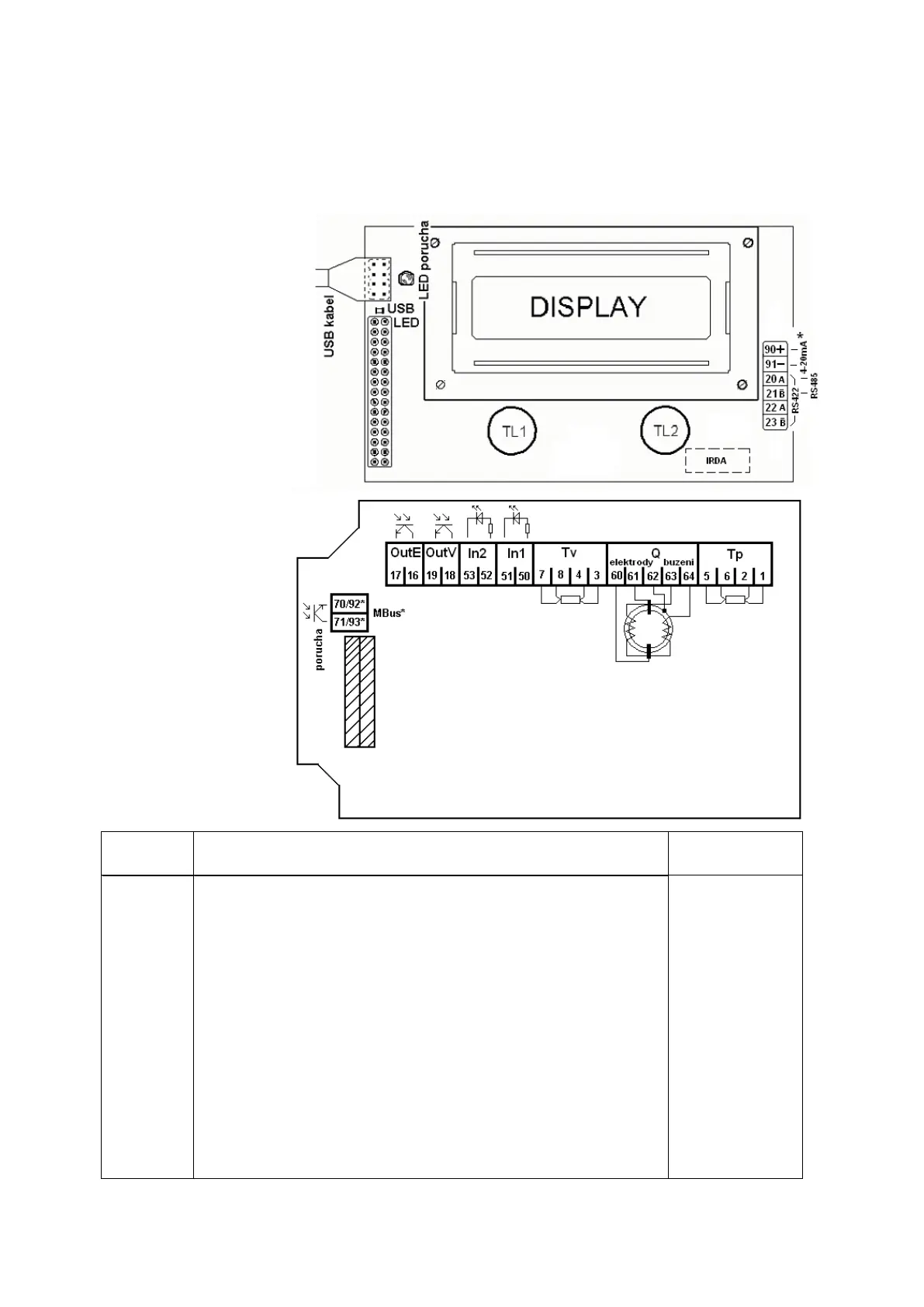

Terminal board wiring
Terminal
No.
Signal description
Signal
identification
1
2
3
4
5
6
7
8
16
17
18
19
50
51
Sensor into supply piping/assigned to No.5 (* 4-wire only)
Sensor into supply piping/assigned to No.6
Sensor into return piping/assigned to No.7 (* 4-wire only)
Sensor into return piping/assigned to No.8
Sensor into supply piping (* 4-wire only)
Sensor into supply piping
Sensor into return piping (* 4-wire only)
Sensor into return piping
Energy output for remote pulse counting *
Energy output for remote pulse counting – ref. level *
Volume output for remote pulse counting *
Volume output for remote pulse counting – ref. level *
Pulse input 1 *
Pulse input 1 – ref. level *
CE
CV
