InteliLite
NT
– MRS10/11/15/16, SW version 1.5, ©ComAp – September 2009 13
IL-NT-MRS-1.5-Reference Guide.pdf

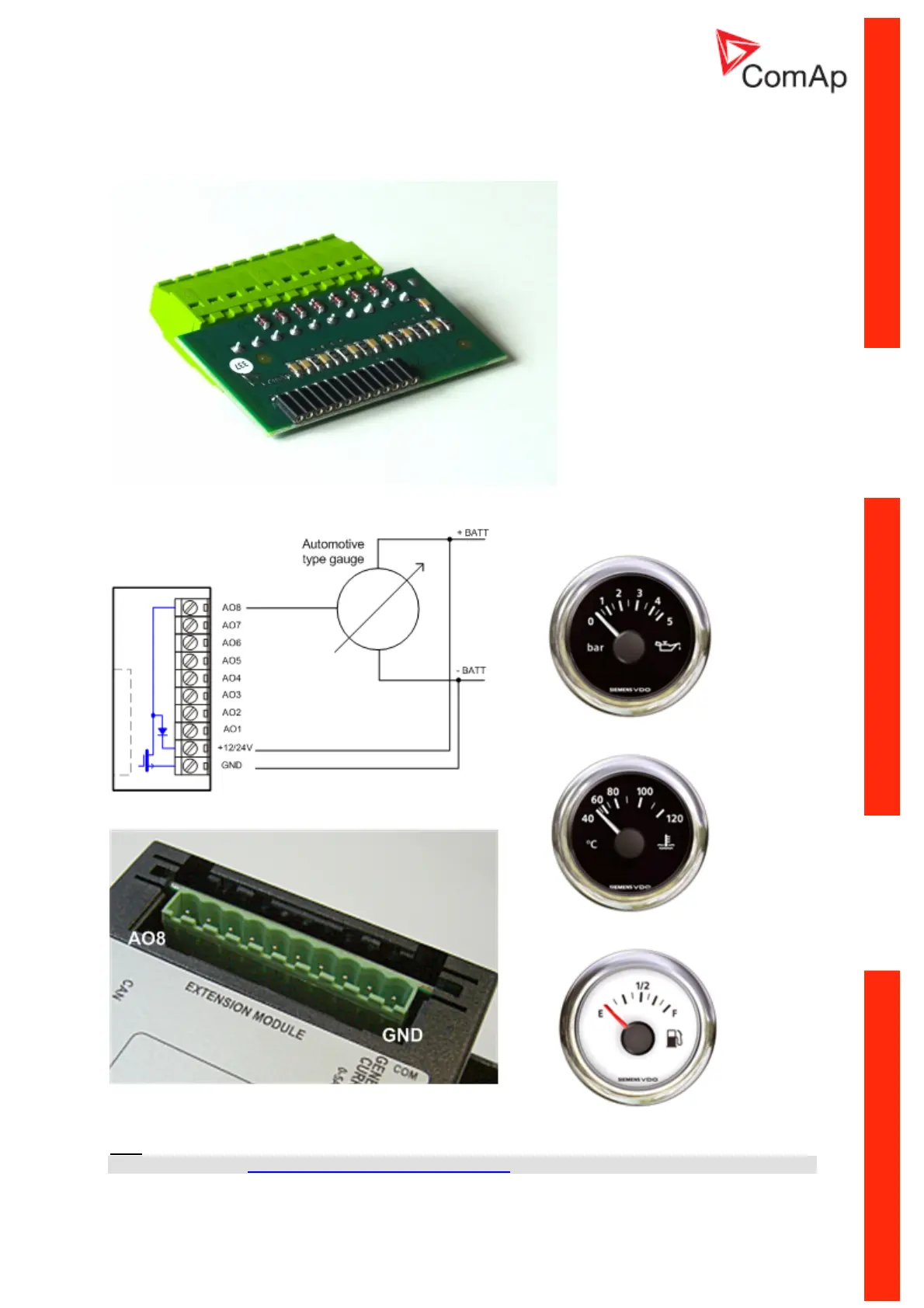

Installing IL-NT AOUT8 module is similar to installing RS 232 module. The difference is that module
fits to “extension module” slot and after installing IL-NT AOUT8 you do not put back the small cover.
IL-NT AOUT8 module:
Typical wiring
Hint:
Please see chapter IL-NT AOUT8 interface (optional card) for technical details.
