Installation
Mounting

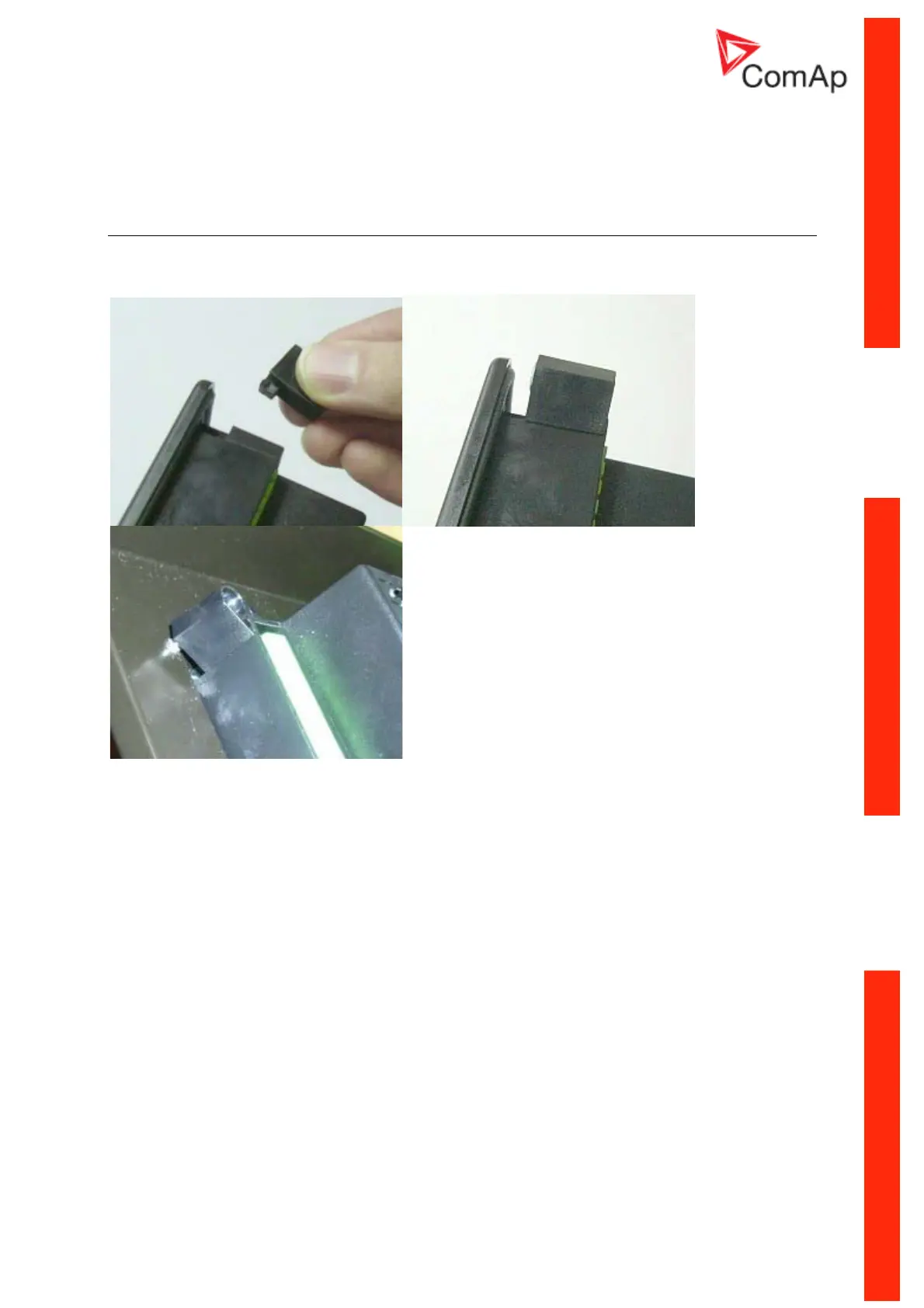

The controller is to be mounted onto the switchboard door. Requested cutout size is 175x115mm. Use
the screw holders delivered with the controller to fix the controller into the door as described on
pictures below.
