INSTALLATION GUIDE FOR RX-7W22, II2
3.4 EQUIPMENT CONNECTORS
3.4.1 PS BDA CONNECTORS
The PS BDA is designed for all cable entries from the right or left of the enclosure, as shown in the following
figure.

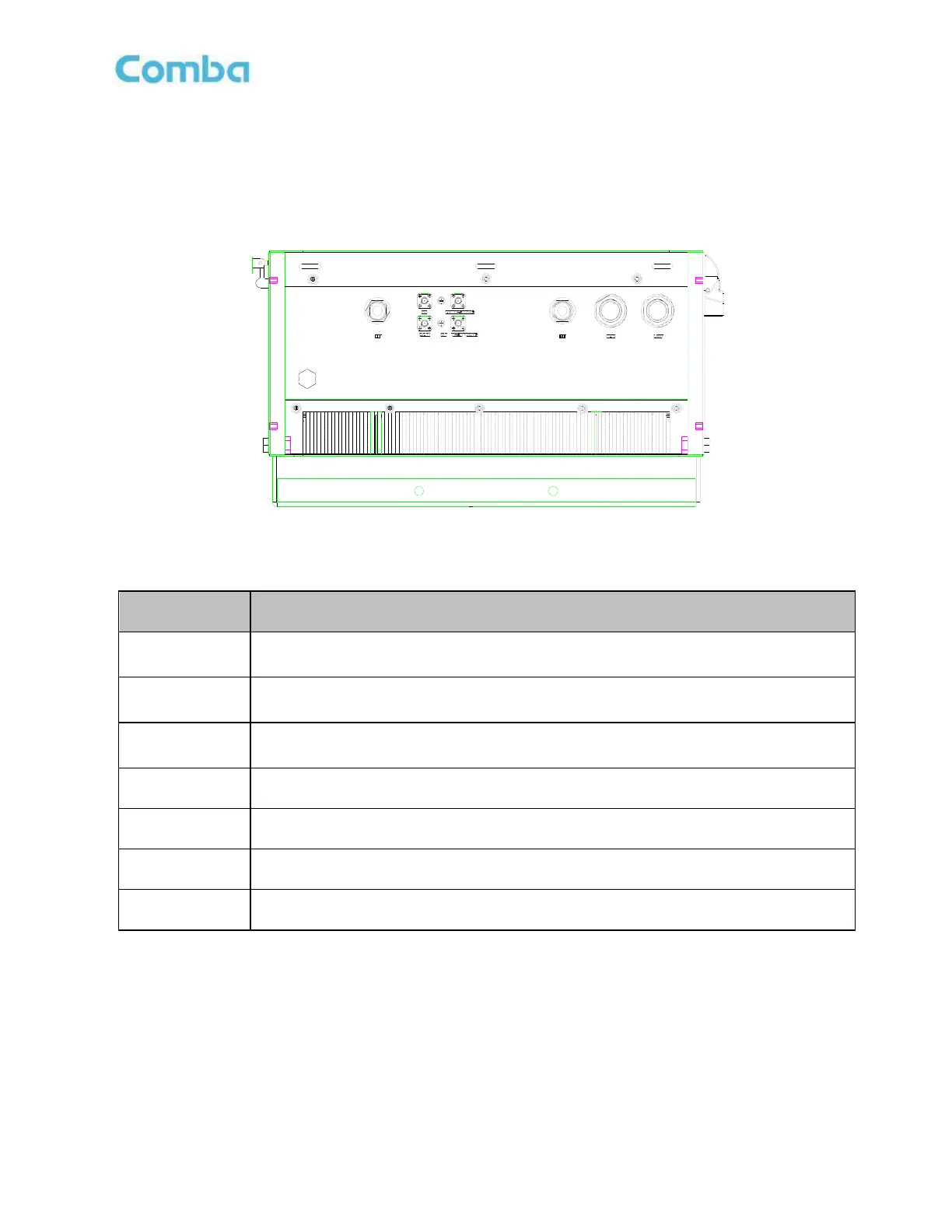

Figure 6: Equipment Connectors
Table 1: Equipment Connectors
Identifier
Descriptions
Power
(Knock Out)
Power cable connector for a pre-installed power cord for connection to DC
(e.g. DC -48V, Max. current is 8A)
DT Test
SMA connector for DT port test, -27dB coupling to DT port, available for both
downlink and uplink test.
MT Test
SMA connector for MT port test, -27dB coupling to MT port, available for both
downlink and uplink test.
DT
N-Female connector for connection to donor antenna.
MT
N-Female connector for connection to service antenna.
OMT
RJ45 Connector for local WEB GUI connection.
LAN
RJ45 Connector for internet connection.
