INSTALLATION GUIDE FOR RX-7W22, II2
➢ Device Alarm
This screen shows the alarm status.

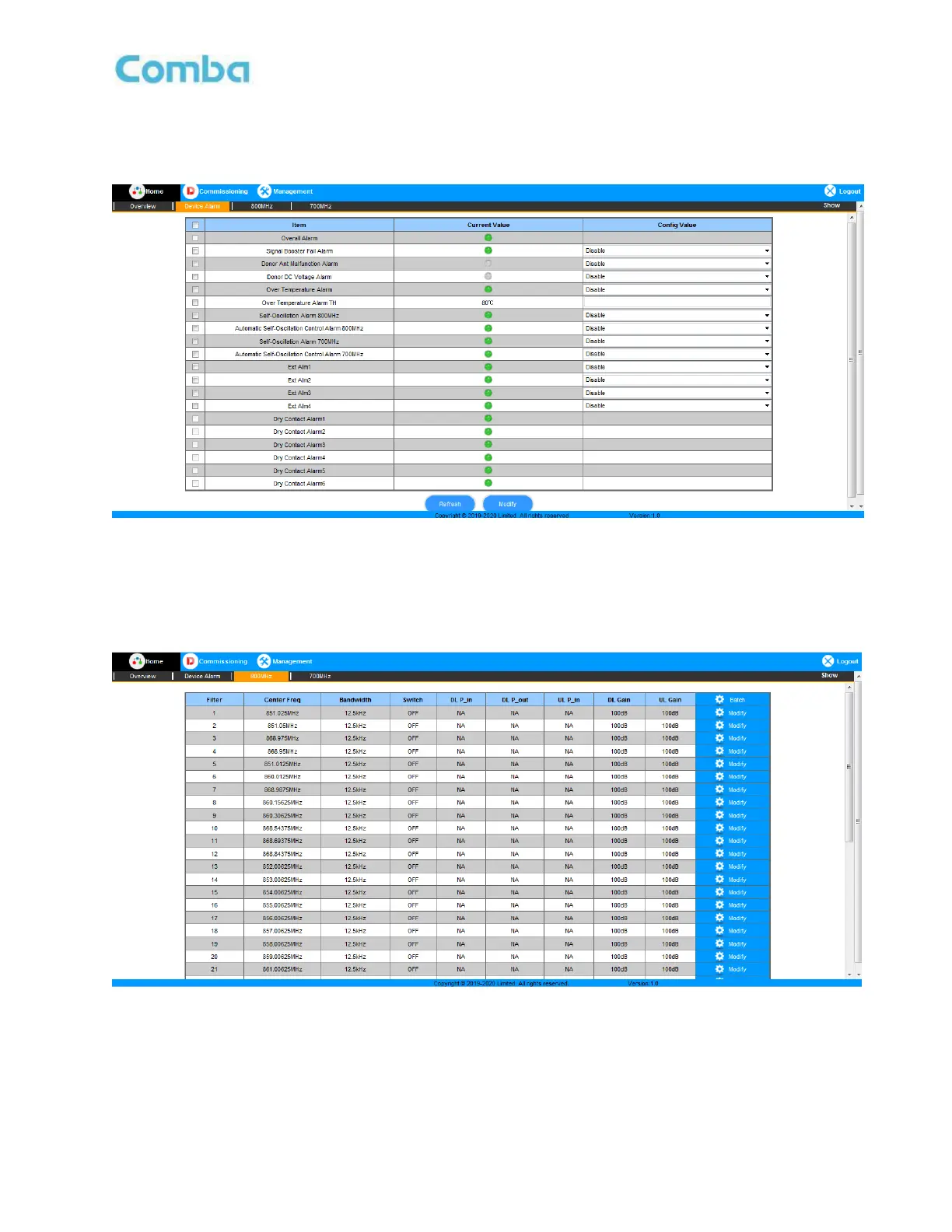

Figure 13: Device Alarm Screen
➢ 800MHz/700MHz
This screen is available for PS BDA to adjust the center frequency and the bandwidth.
Figure 14: 800MHz Screen
