Description
Art. CA2100P
Ciao Series modular entrance panel with die-cast aluminium front cover and nameplates with white LED backlighting. To be
finished with 1/2/4/8 call buttons, available to purchase separately.
Featuring a Smart button programming mode. Supplied with a surface-mount installation support.
Entrance panel art. CA2100P can be used alongside up to 4 button modules art. CA2200P (both horizontally and vertically) to
reach a maximum of 72 call buttons.

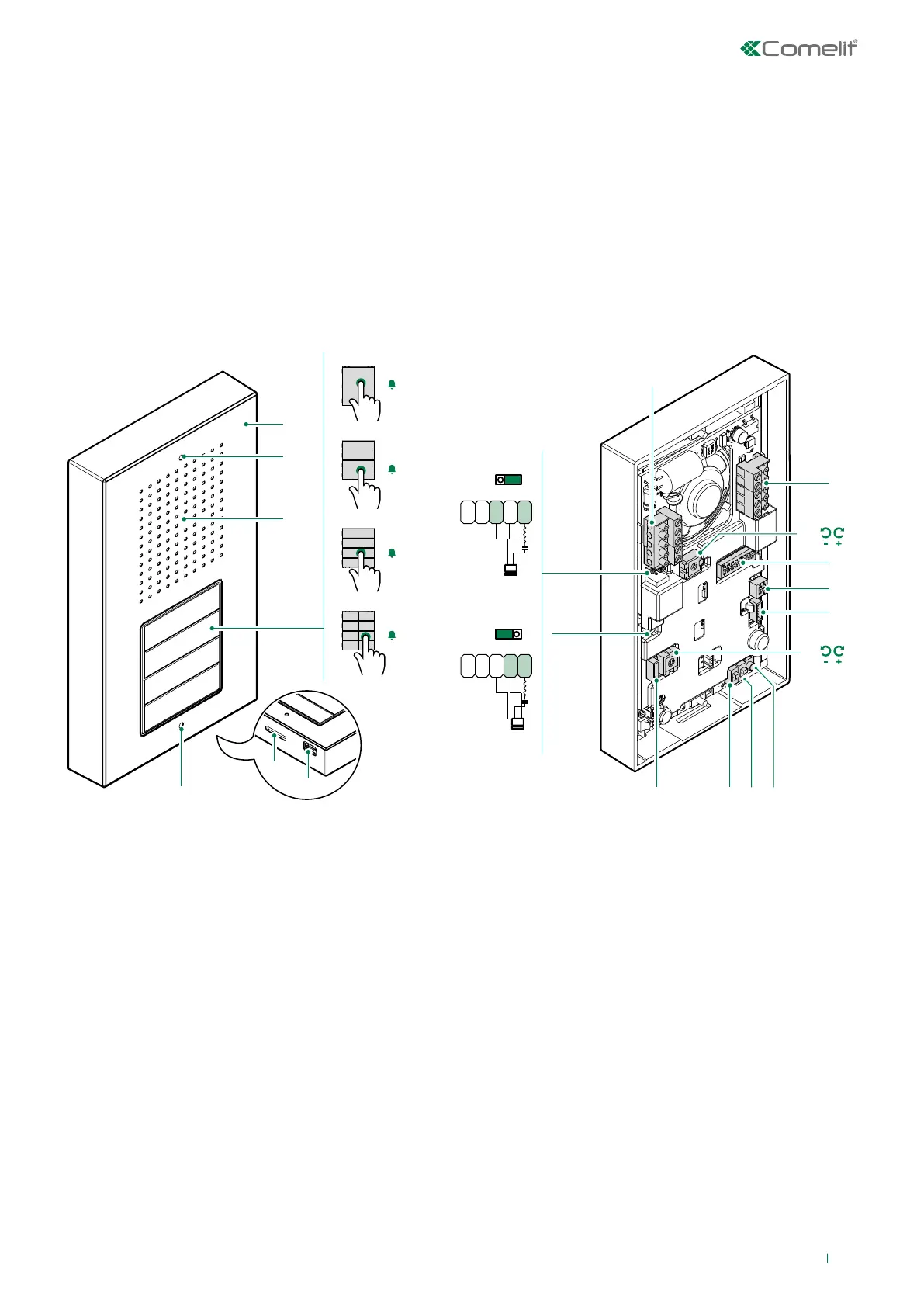

1.
2.
2.
6.
5.
3.
4.
10.
11.
12.
15.
13.
14.
18. 16.17.14.
8.
7.
JP1
NC
NO
JP1
NC
NO
9.
1
2
1
4
1
2
3
8
5
6
7
4
1
2
3
art. CA9213
art. CA9210
art. CA9211
art. CA9212
SE
-
SE
+
NC NO C
SE
-
SE
+
NC NO C
1. Die-cast aluminium cover
2. Faceplate fixing screw holes
3. Loudspeaker
4. Call buttons 1 / 2 / 4 / 8 users (available to purchase
separately)
5. Microphone
6. Condensation drainage hole
7. CV2 jumper to be removed when switching o the button
lighting
8. JP1 enabling the RC network for door lock filter on relay
contacts
9. Terminal block for J4 connection:
SE- SE+ connection for electric door lock
NC NO C relay contacts
10. Terminal block for J3 connection
L L bus line connection
COM RTE and DO reference negative
DO door open indication
RTE request to exit button
11. LED button brightness control trimmer
12. S2 dip switch for button addressing and special function
programming
13. S1 dip switch for button type configuration (1 / 2 / 4 / 8
users)
14. J2 and J5 6-pole connectors for button module
connection
15. SPK loudspeaker volume adjustment trimmer
16. SW1 programming confirmation button
17. PRC call address programming input/output switch
18. PRS special programming input/output switch
