1-2. Rear Panel

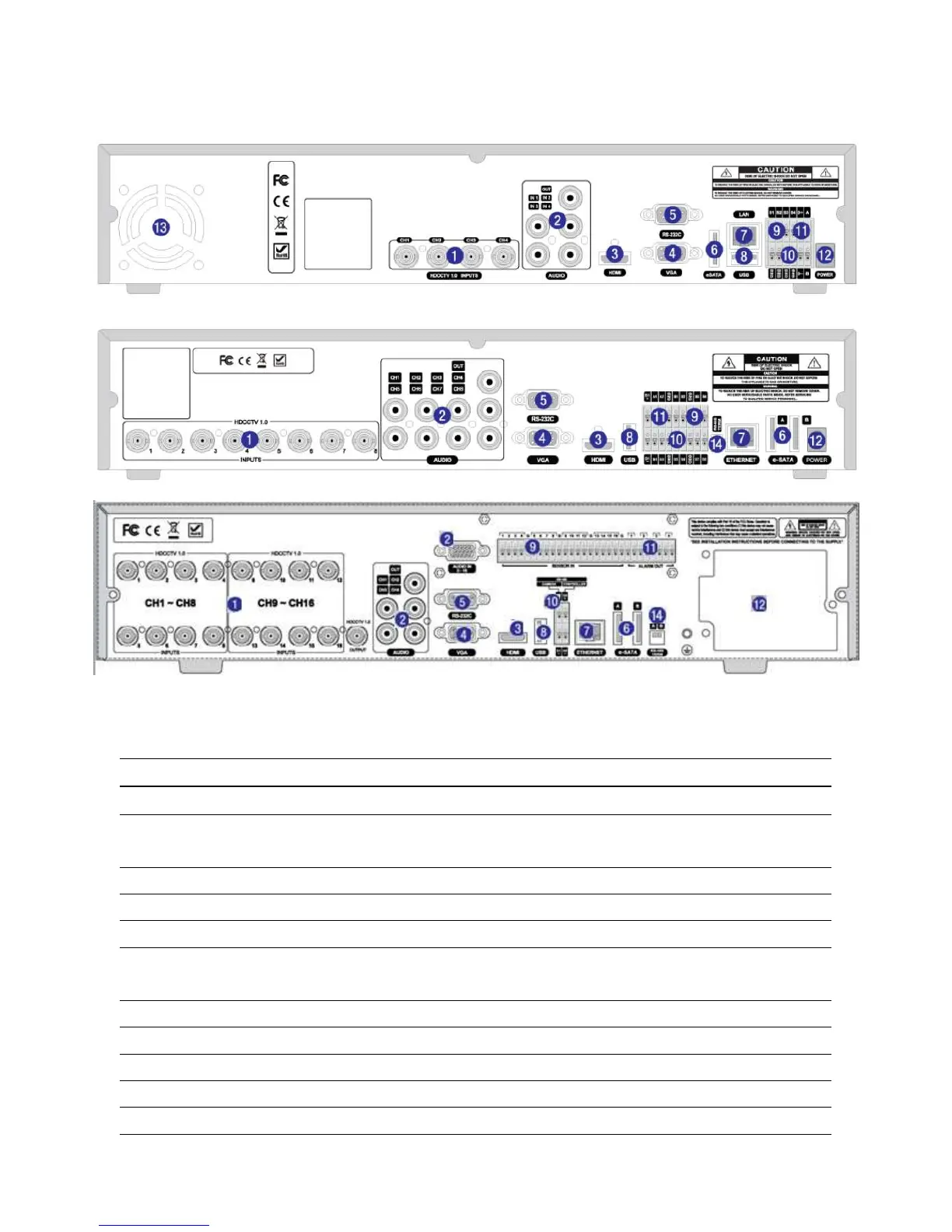

Figure 2.2.1. Rear Panel
Table 2.2.1. Rear panel connections
NO Connection Purpose
1
VIDEO IN
HD-SDI
connectors for video input.
2
AUDIO IN
4/8/16 connectors for audio input.
In case of HDDVR016A, an audio cable is needed from ch 5 to ch 16.
AUDIO OUT
1 connector for audio output.
3
HDMI OUT
HDMI
connectors for main video output.
4
VGA
Connector for VGA monitor.
5
RS-232C
For engineering use only, the function be used by a gender through the
VGA output
6
E-SATA
External SATA terminal
7
ETHERNET
RJ-45 connector for network function
8
USB Port
Connector for Mouse or Backup
9
SENSOR IN
4/8/16 connectors for Sensor device connection
10
RS-485
RS-485 control terminal (D+, D-)
