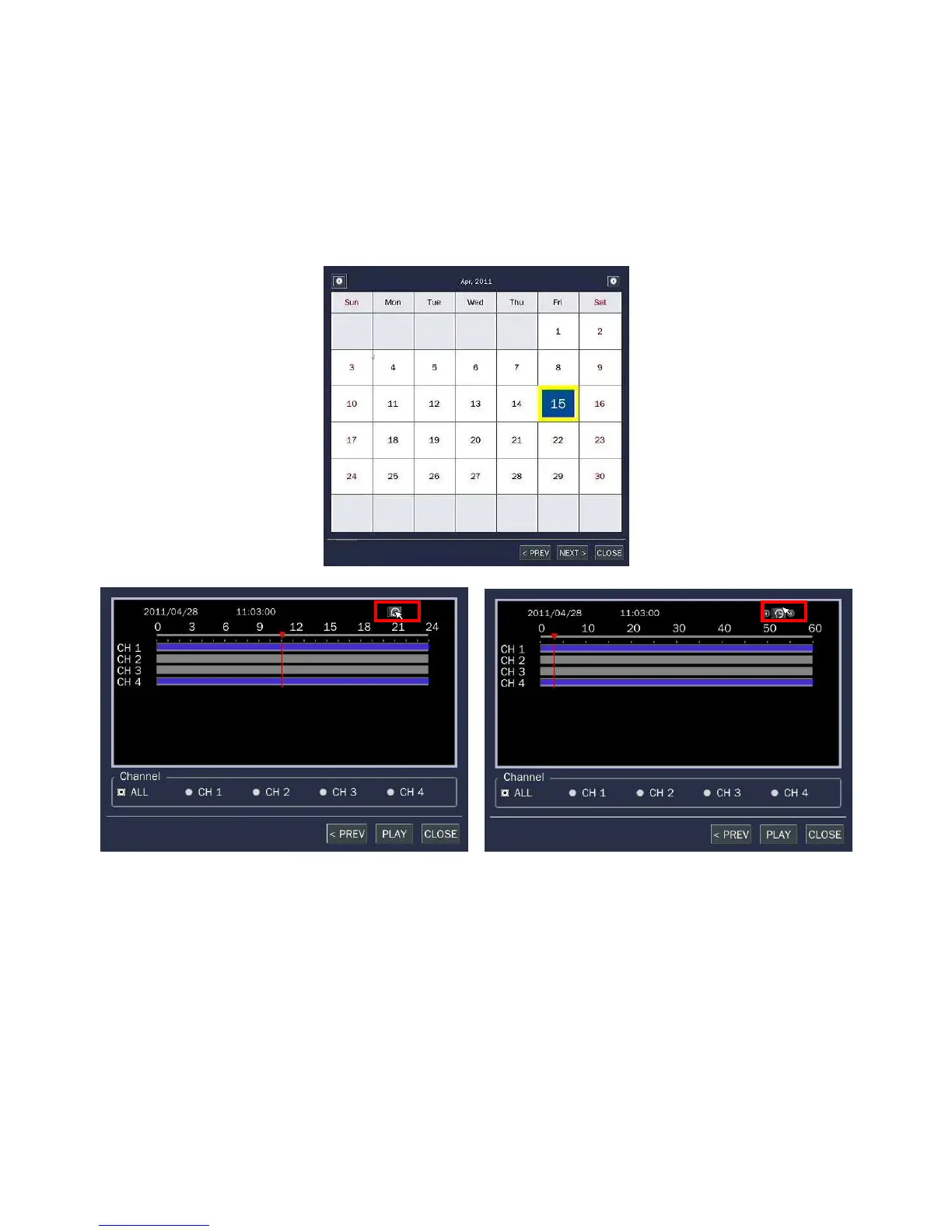

Figure 4.2.1. Search Screen
There are 7 ways of search menu such as TIMELINE, EVENT, GO TO FIRST TIME, GO TO LAST TIME,
GO TO SPECIFIC TIME, ARCHIVE and LOG on the screen.
4-2-1. TIME-LINE Search
The TIME-LINE search window is used to find the stored video by using the time line bar.
When it clicks a Timeline menu, user can see a calendar which has recording data. Select a specific date
and time. Use a drag-and-drop function of the mouse control. User can select a specific minutes using a
button in the above red box. Press a PLAY button after setting a specific time. Press the PREV to return to
the SEARCH window.
4-2-2. Event Search
The Event Search window is used to find stored video.
