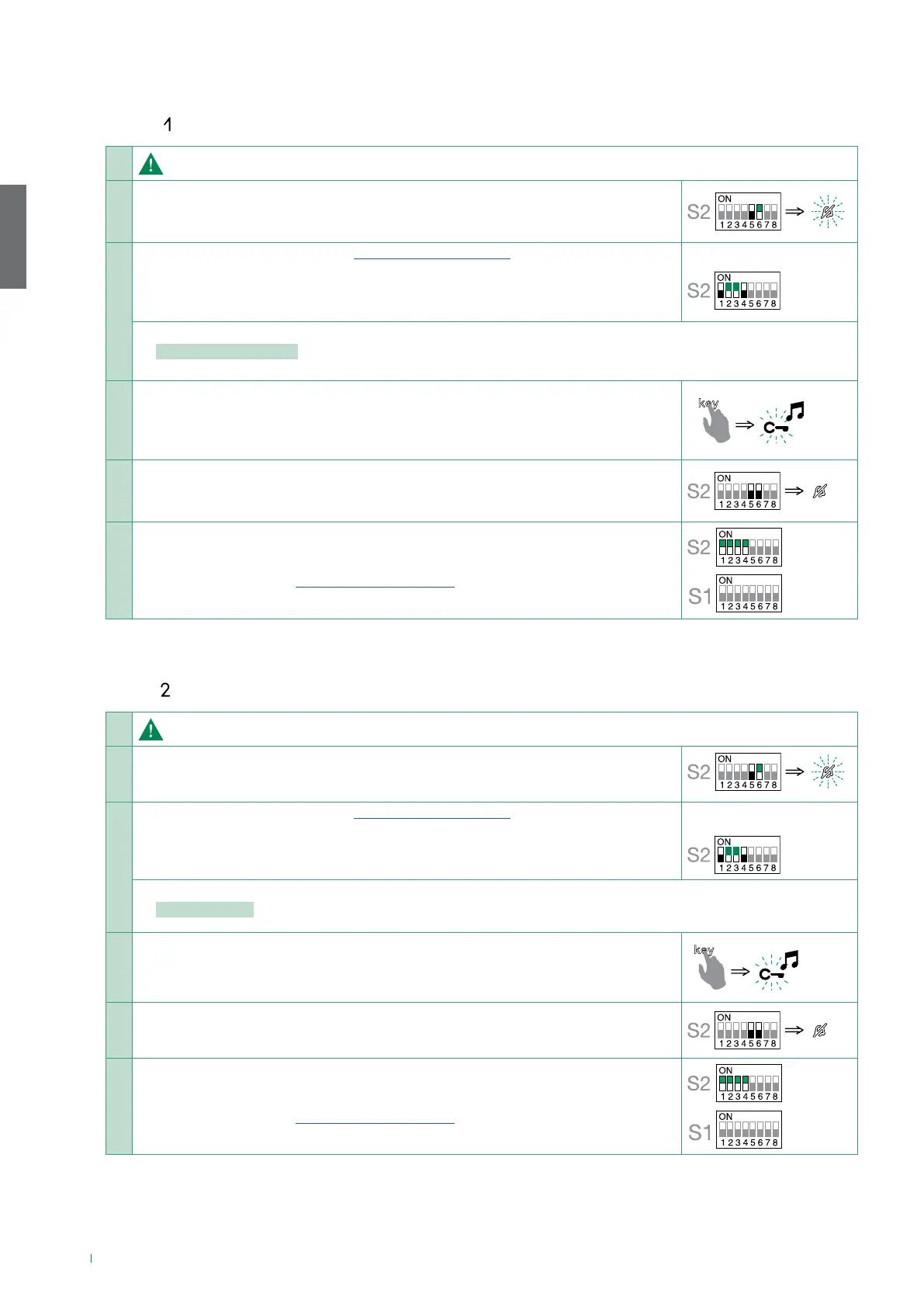

4.2.3.4 HOW TO PROGRAM THE SELF-IGNITION FUNCTION
Example: key
√
Take note of the S1 setting and restore it when programming is complete
1 Enter programming mode
f Set S2 DIP switch 5-6 to the combination 01
» the Privacy LED flashes
2 2.1. Choose the function: refer to the "4.2.1 Preset function table" and select a S2 DIP switches
combination in which the self ignition function (AI) is listed for the keys you wish to program.
Example: 0110
2.2. Addressing:
f for self-ignition function don't set S1 DIP switches
3 Select the key to be associated with the function
f Press and release the key to be associated with the function
» the lock-release LED lights up
» a confirmation tone will sound.
4 Exit programming mode
f To exit programming mode, set S2 DIP switches 5-6 to the combination 00
» the Privacy LED switches o
5 When programming is complete,
f Set S2 DIP switches 1-2-3-4 to the combination 1111 (PROG setting). In this DIP switch setting,
the keys control the programmed functions; the NON-programmed keys control functions
referred to on line 0000 ("4.2.1 Preset function table").
f Restore the user code setting on S1.
4.2.3.5 HOW TO PROGRAM THE DOCTOR MODE
Example: key
√
Take note of the S1 setting and restore it when programming is complete
1 Enter programming mode
f Set S2 DIP switch 5-6 to the combination 01
» the Privacy LED flashes
2 2.1. Choose the function: refer to the "4.2.1 Preset function table" and select a S2 DIP switches
combination in which the Doctor mode (D) is listed for the keys you wish to program.
Example: 0110
2.2. Addressing:
f for Doctor mode don't set S1 DIP switches
3 Select the key to be associated with the function
f Press and release the key to be associated with the function
» the lock-release LED lights up
» a confirmation tone will sound.
4 Exit programming mode
f To exit programming mode, set S2 DIP switches 5-6 to the combination 00
» the Privacy LED switches o
5 When programming is complete,
f Set S2 DIP switches 1-2-3-4 to the combination 1111 (PROG setting). In this DIP switch setting,
the keys control the programmed functions; the NON-programmed keys control functions
referred to on line 0000 ("4.2.1 Preset function table").
f Restore the user code setting on S1.

Comelit HFX-7000MW Specifications

General

Resolution	800 x 480 pixels
Connectivity	Wired
Ringtone volume control	Yes
Brightness control	Yes
Contrast control	Yes
Color control	Yes
Privacy function	Yes
Wall-mounted	Yes
Desk base	Optional
Night Vision	Yes
Camera	Yes
Display	7-inch TFT LCD
