3. Door Camera (EX-700D)

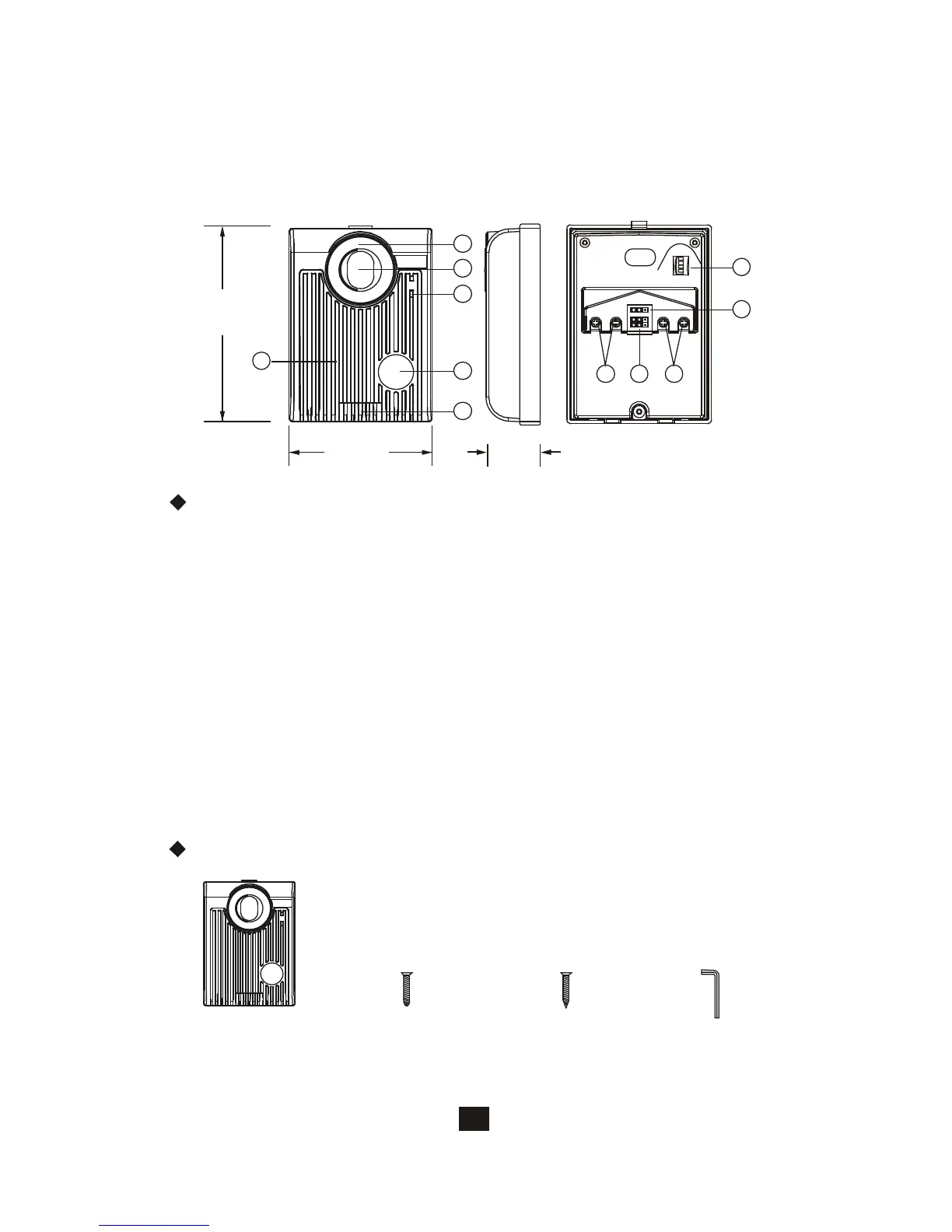

3.1. EX-700D Identification
130mm
(5.12)"
36mm
(1.42)"
1. White LED Illumination
2. 1/3" Color CCD
3. Microphone
4. Speaker
5. Call button
6. Screw cover
7. CCD view angle knob
(-6 degrees, 0 degrees, 8 degrees, 16 degrees)
8. Jumper 2 (enable/disable light senor)
9. Jumper 1 (dry contact or current output selection)
10. Wire to door strike
11. Wire to main Monitor
EX-700D identification:
98mm
(3.86)"
JP1
JP2
1
2 3 4
2
3
1
5
4
6
7
8
910 11
EX-700D packaging
X1
Door Camera
30
X2
White wall
mount screws
X2
Flat head screws
X1
security
screw wrench
