Comelit HFX-700R KIT - Door Camera Identification and Packaging; Door Camera Components; HFX-700 R Kit Packaging Contents

2.2. Door Camera
130mm
(5.12)"
36mm
(1.42)"
1. White LED Illumination
2. Speaker
3. 1/3" Color CCD
4. Microphone
5. Call button
6. Screw cover
7. CCD view angle knob
(-6 degrees, 0 degrees, 8 degrees, 16 degrees)
8. Jumper 2 (enable/disable light senor)
9. Jumper 1 (dry contact or current output selection)
10. Wire to door strike
11. Wire to main Monitor
7

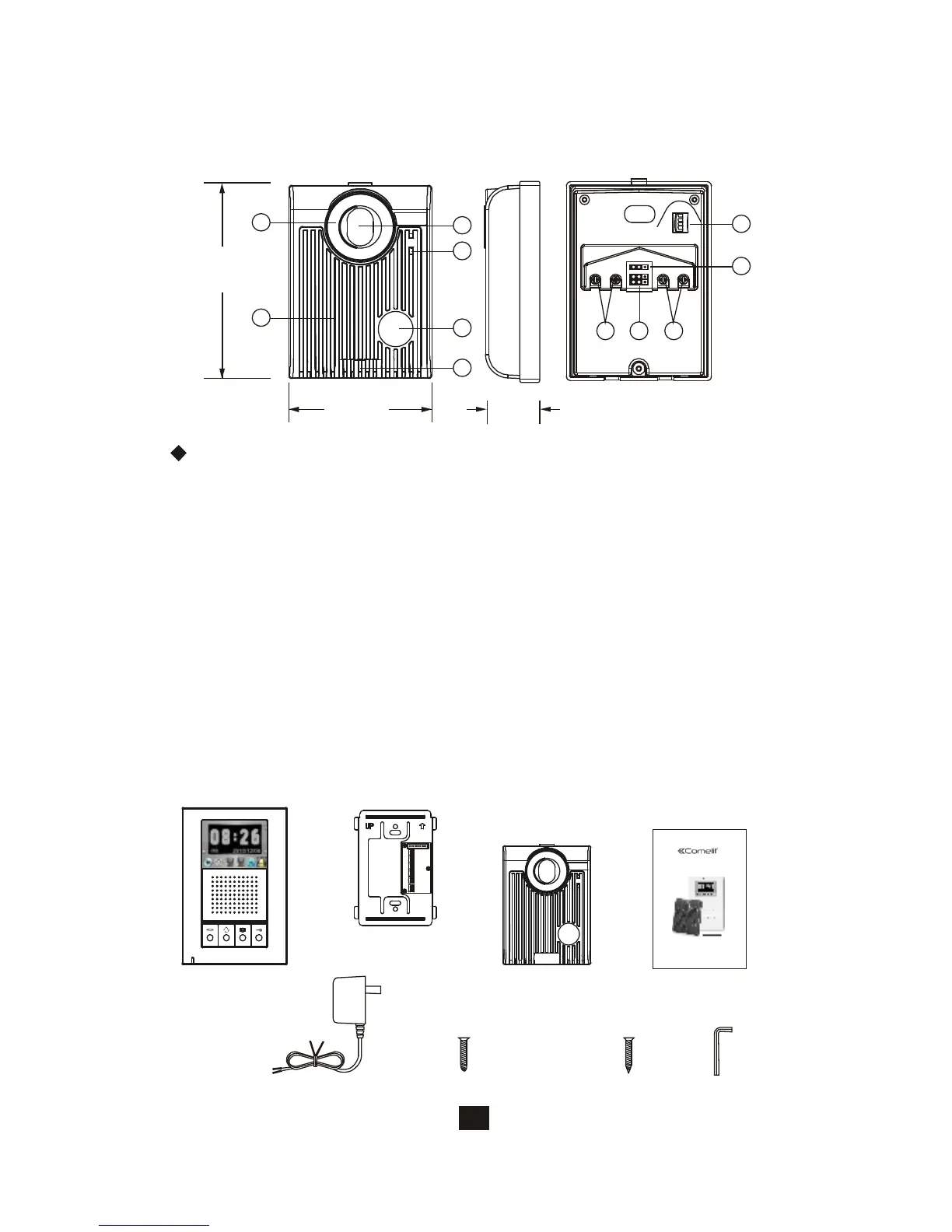

HFX-700R Door Camera identification:
98mm
(3.86)"
JP1
JP2
1 2 3 4
3
4
5
2
6
7
8
910 11
Door camera
2.3.HFX-700R KIT Packaging
X1X1
Main monitor
X1
Wall mount bracket
PT1
PT2
DG1
DG2
OUT+
OUT-
DR2
DR1
POWER
<+>
<->
X1
Manual
Adaptor
X1
X4
White wall
mount screws
X1
X4
Flat head screws
1
HF COLOR VIDEO INTERCOM
WITH RECORDING
,
OWNERS MANUAL
INSTALLATION AND OPERATION
HFX-700R KIT
security
screw wrench
