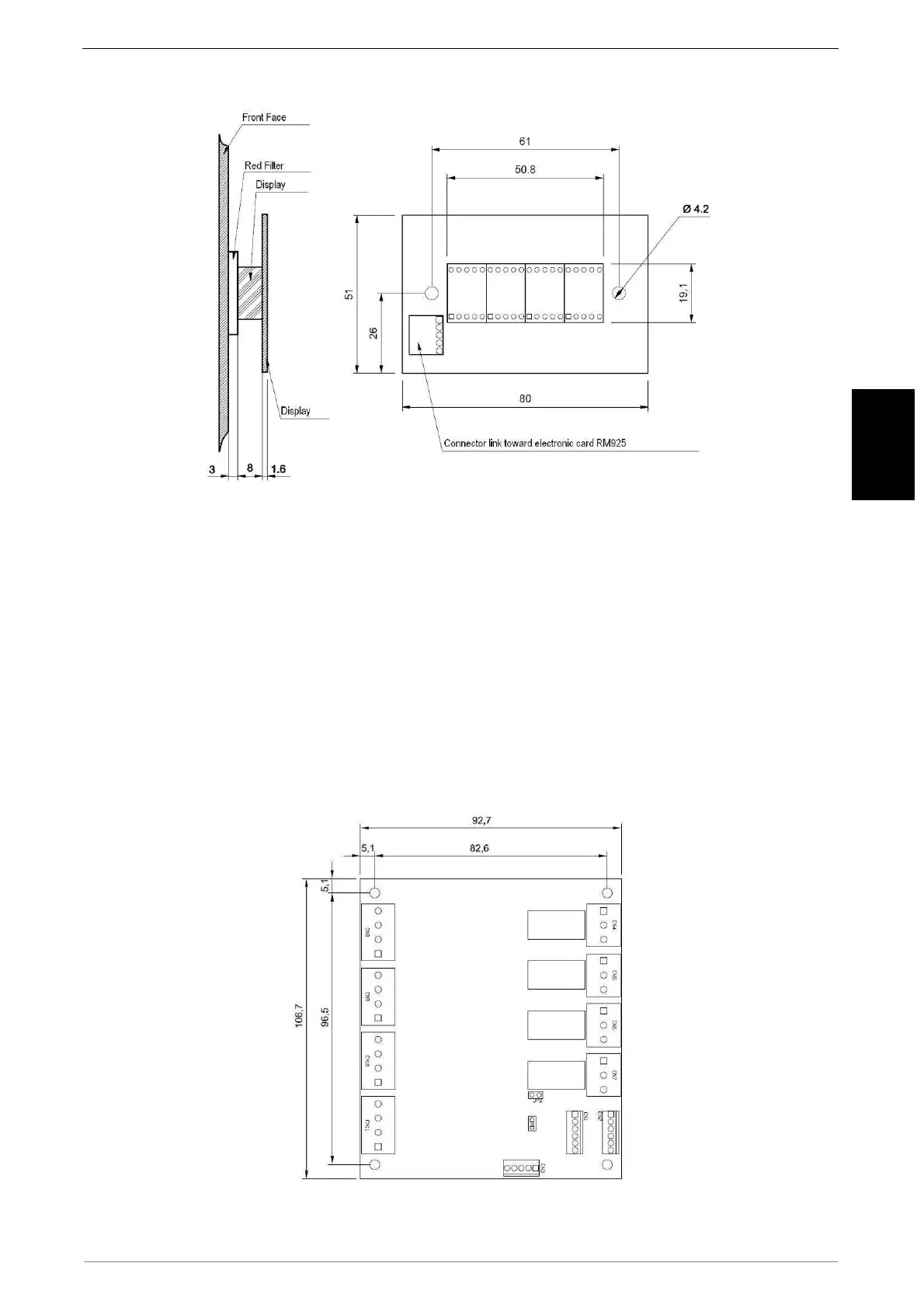

5.2 Four digit display installation (RM924)
Figure 9
5.3 Card installation
o Placed the card correctly, being carefully not to place them directly on metal parts.
o Paying attention to any uncovered cables.; in particular in correspondence of the
parts in high voltage.
o Ensure adequate ventilation system.
5.3.1 Installing KPM card
The KPM card makes it possible to manage up to 4 services simultaneously: 4 relay
outputs for service activation and 8 inputs, of which 4 to choose the service and 4 for
inhibit/busy signal.
Figure 10
