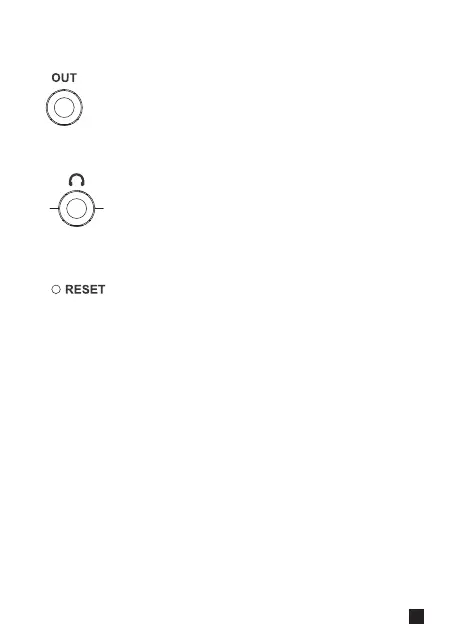

Insert the corresponding audio output cable to output the
audio
5. 3.5mm TRS Audio Output Jack
Plug in the 3.5mm TRS/TRRS headset to monitor
6. 3.5mm TRS/TRRS Earphone Monitoring Jack
Traxshot can be reset by inserting a pin
7. Reset
5
