Command access MLRK1 - Electrified Exit Device Installation Example; Recommended Power Supplies

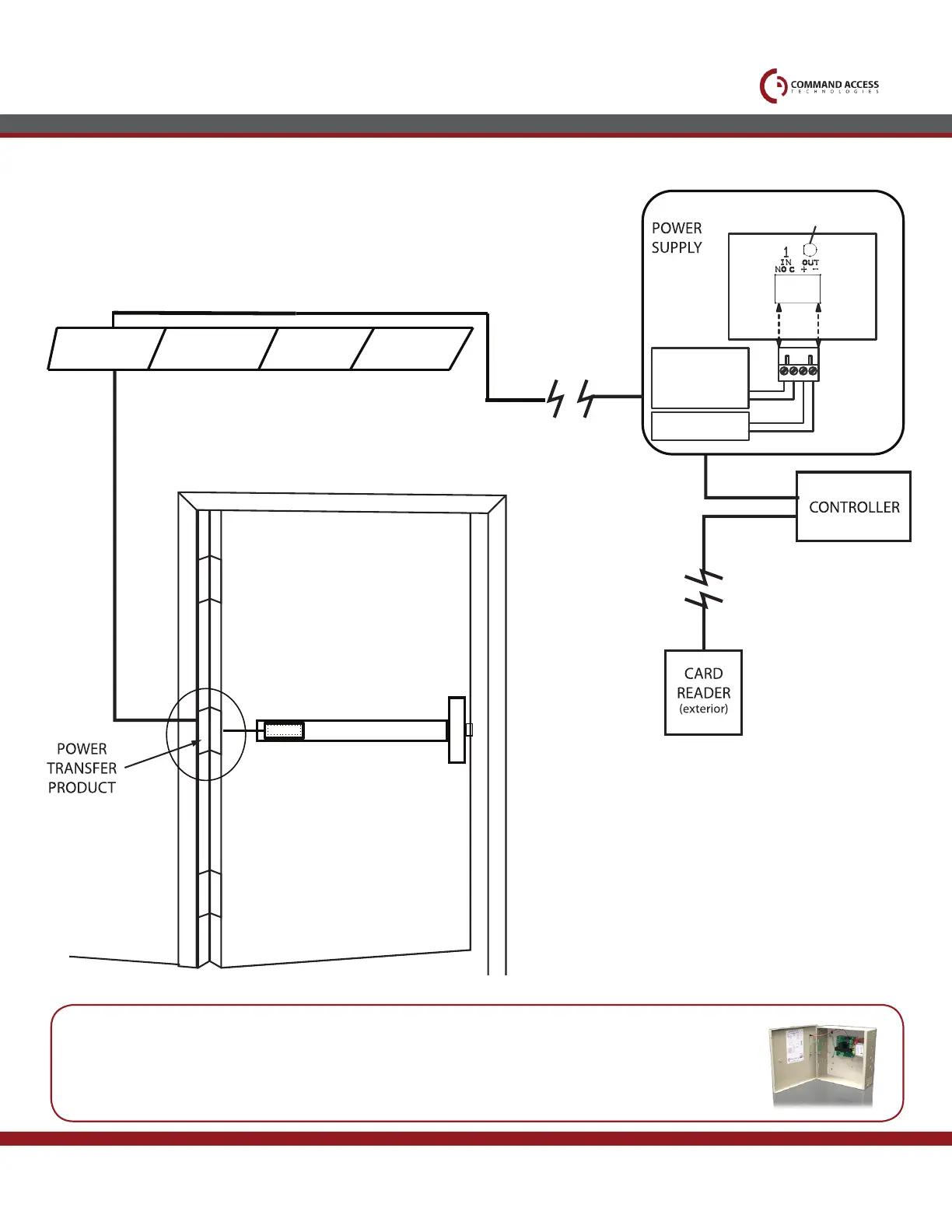

Electrified Exit Device
Installation Example
US customer support 1-888-622-2377 | www.commandaccess.com | CA customer support 1-855-823-3002
Ceiling Tile
Legend
Standard Placement
Optional Placement
Module
GREEN
CHANNEL 1
LED
NORMALLY OPEN
DRY CONTACT FROM
ACCESS CONTROL
SYSTEM
NO VOLTAGE
LOCKING
HARDWARE
+
-
CAT
Recommended Power Supplies:
All Command Access exit devices & field installable kits have been thoroughly
cycle tested with Command Access power supplies at our factory.
