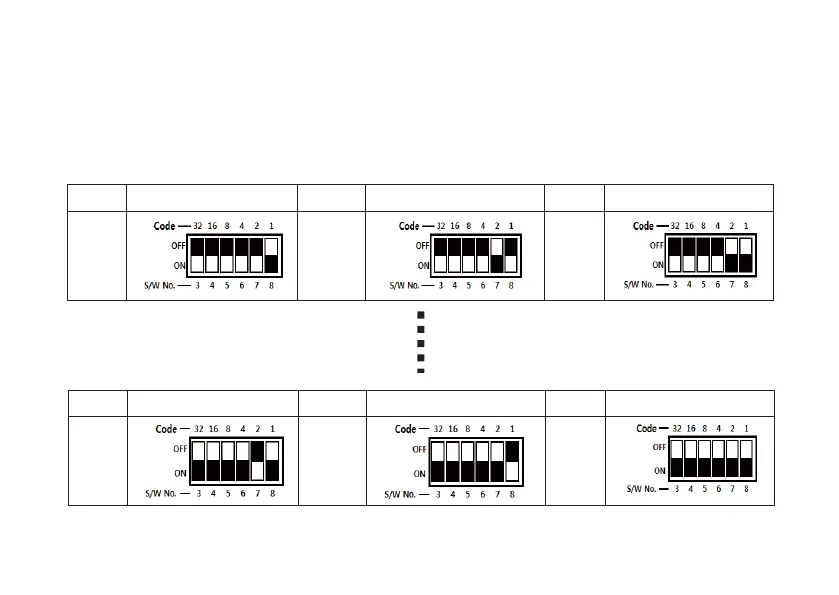

5-1-1. ID setting method by DIP switch (Household input mode)
(S/W3 ~ S/W 8 : BOARD ID setting)
* Please refer to the below instruction
.
Number How to set up Number How to set up Number How to set up
1 2 3
Number How to set up Number How to set up Number How to set up
61 62 63

Commax CCU-310EV Specifications

General

Model Name Spec.	CCU-310EV
Wiring	481 DATA : 2 lines (Polarity) / E/V connection : 2 lines (Non-polarity) RS-485 : 3 lines (Polarity)
Distance	1Km (Pie 0.65 wire basis)
Voltage	DC 12V / 1A
Power Consumption	Standby : 55mA / Operation : 70mA
Operating Temp.	0~+40℃
