Commax CCU-310EV User Manual

10
5-2. Setting method when household floor mode.
z It supports only the elevator call function in the household,
The elevator call function is not supported when the door is opened by the lobby phone.
z Applicable for only specific video phone which provides EL call function.
z Household’s floor information must be registered in CCU-310EV to use EL calling.
z All households of the floor set by CCU-310EV can use EL calling.
1 unit of CCU-310EV can register up to 10 floors. (up to 80 floors)
z It is used to set one floor per port of board.

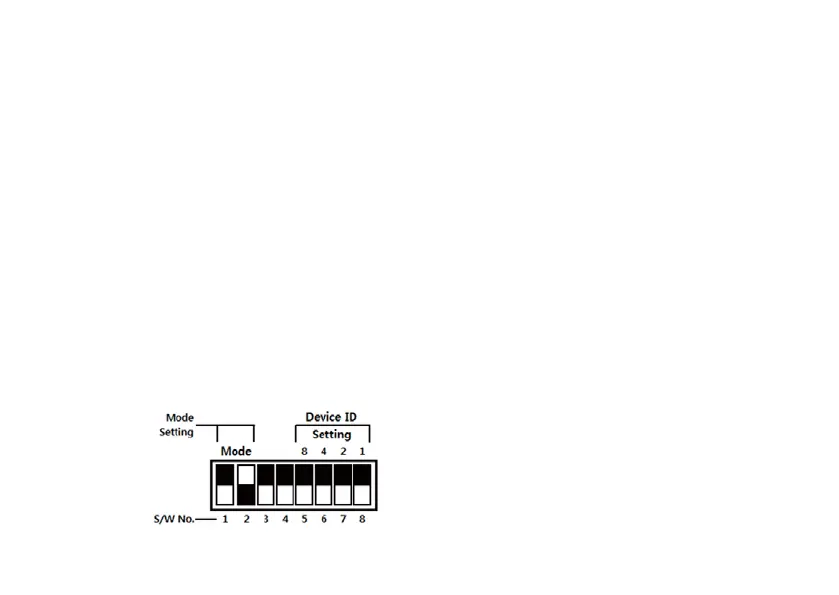

Η Set DIP switch to be household floor mode.
(When you call an elevator from a household)
* ( S/W1 Î OFF , S/W2 Î ON)
z ID of CCU-310EV can be set from “1” to “8”.
z In floor mode, up to 8pcs of CCU-310EV can be installed.

Commax CCU-310EV Specifications

General

Model Name Spec.	CCU-310EV
Wiring	481 DATA : 2 lines (Polarity) / E/V connection : 2 lines (Non-polarity) RS-485 : 3 lines (Polarity)
Distance	1Km (Pie 0.65 wire basis)
Voltage	DC 12V / 1A
Power Consumption	Standby : 55mA / Operation : 70mA
Operating Temp.	0~+40℃
