Commax CDV-35A - Wiring Precautions

Video - Door Phone CDV-35A MANUAL
06
COMMAX

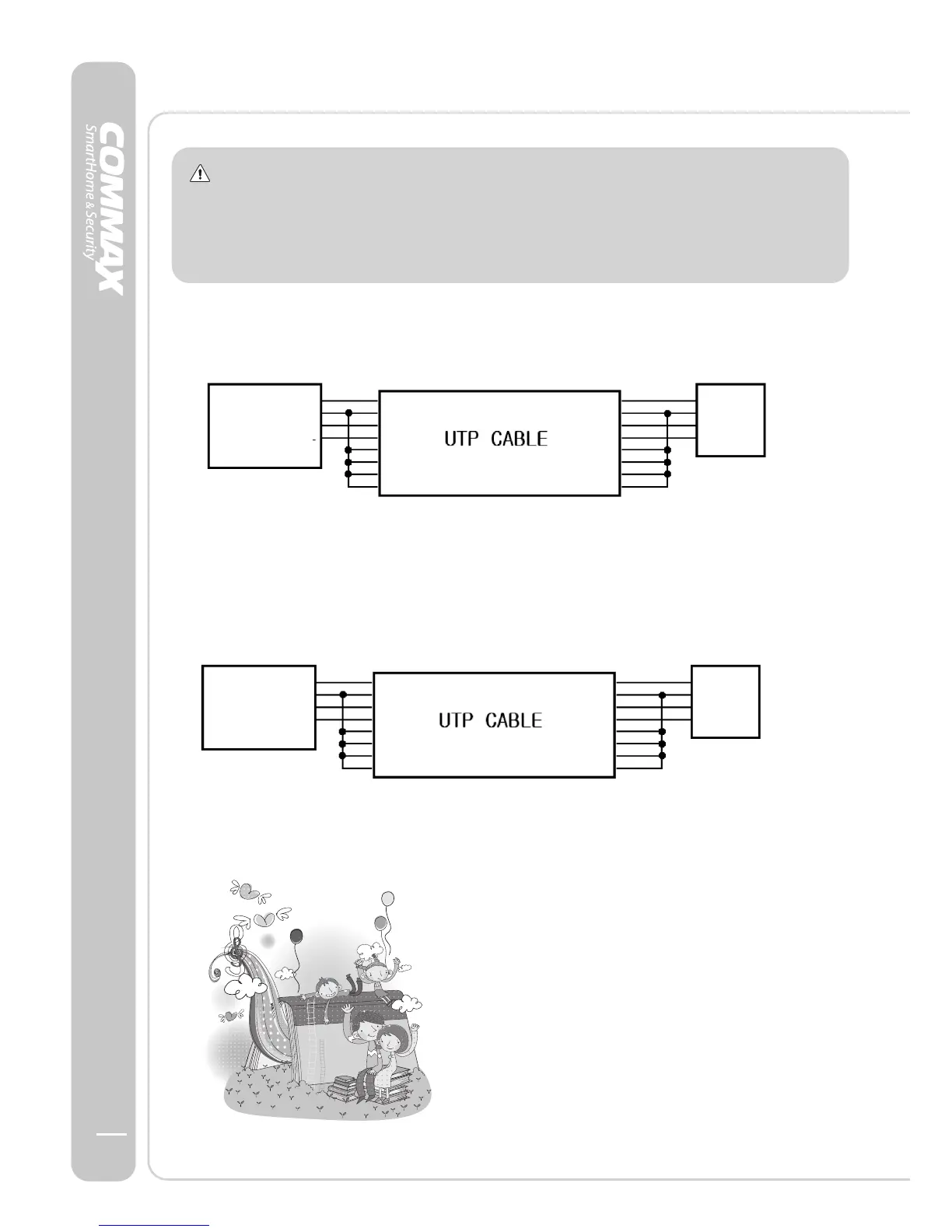

Wiring precautions
☞ Each device should be connected by separated cables.
To use CAMERA 1, CAMERA 2 and interphone using UTP
CABLE[CAT.5], 3 lines of UTP cable are required.
󱇧
󱇧
DOOR Camera Wiring
☞ When using UTP CABLE[CAT.5] for better image quality, connect the rest 4
lines to GND after connecting 4 lines with monitor and camera.
IN
G
B+
VD
CAM1
CAM2
MONIR
CAMERA
IN
G
B+
VD
󱇧
󱇧
INTERPHONE Wiring
☞ When using UTP CABLE[CAT.5] for better image quality, connect the rest 4
lines to GND after connecting 4 lines with monitor and interphone.
IN
G
+
CALL
INTER
PHONE
MONITOR
INTERPHONE
IN
G
+
CALL
