8. Wiring

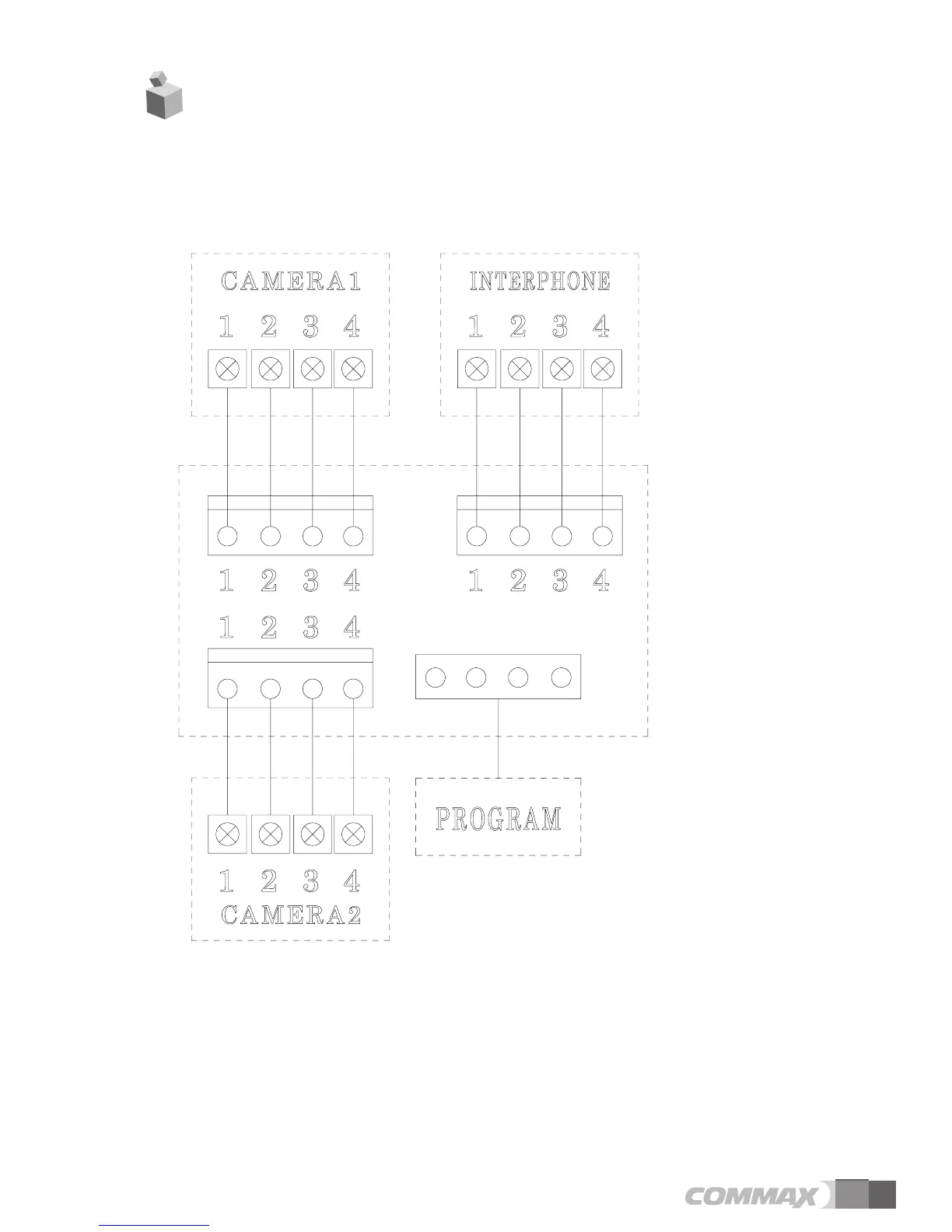

The wiring of this equipment is as follows.
* Camera connector polarity
1. Red : Voice 2. Blue : GND 3. Yellow : Power(+12V) 4. White : Video
