Commax CMP-2BC User Manual

4

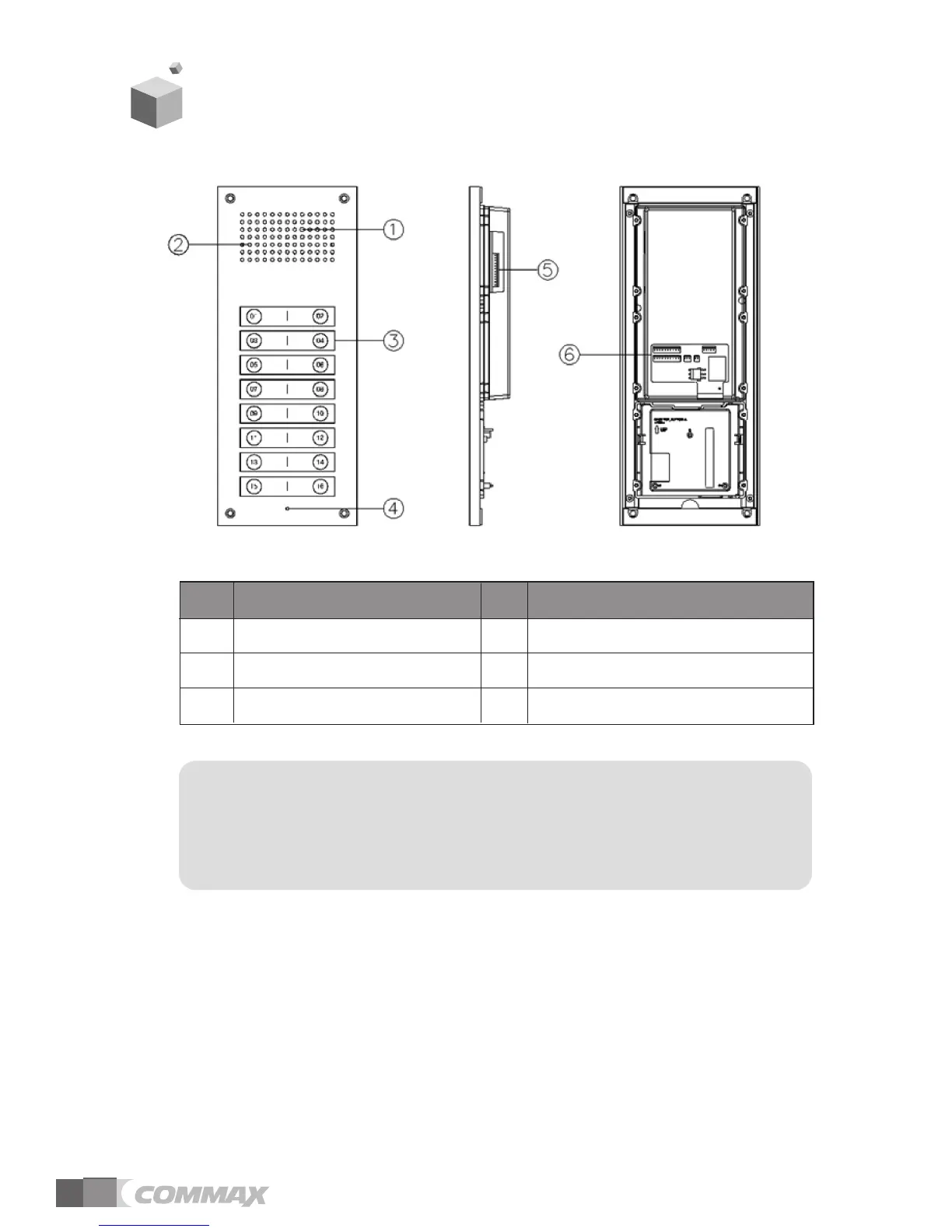

3. Overview
NO. Contents NO. Function
1 Camera
2 Speaker
3 Direct Call Number(2 & 4 rows)
4 C-MIC
5 Extension Port
6 Wire Connection Port
󱄿󱄿
Notice
• This device will be connected with household units through converter.
•This device can be used directly without additional setting.
•This unit can be expended through the extension panels.

Commax CMP-2BC Specifications

General

Voltage	DC 12V
Power Consumption	232mA ( MAX )
Wiring	6 WIRES (POLARITY, Using with Converter unit)
Communication	DUPLEX
Camera Angle	HORIZONTAL 62°, VERTICAL 46°
Camera Module	C-MOS
Scan Frequency	PAL HORIZONTAL : 15.735KHz/60Hz, VERTICAL : 15, 625KHz/50HZ
Temperature	-20°C ~ +50°C

Weight and Dimensions

Demension	CMP-2BC / 4BC : 130(W) X 315(H) X 38(D)
