Commax CMP-2BC User Manual

7

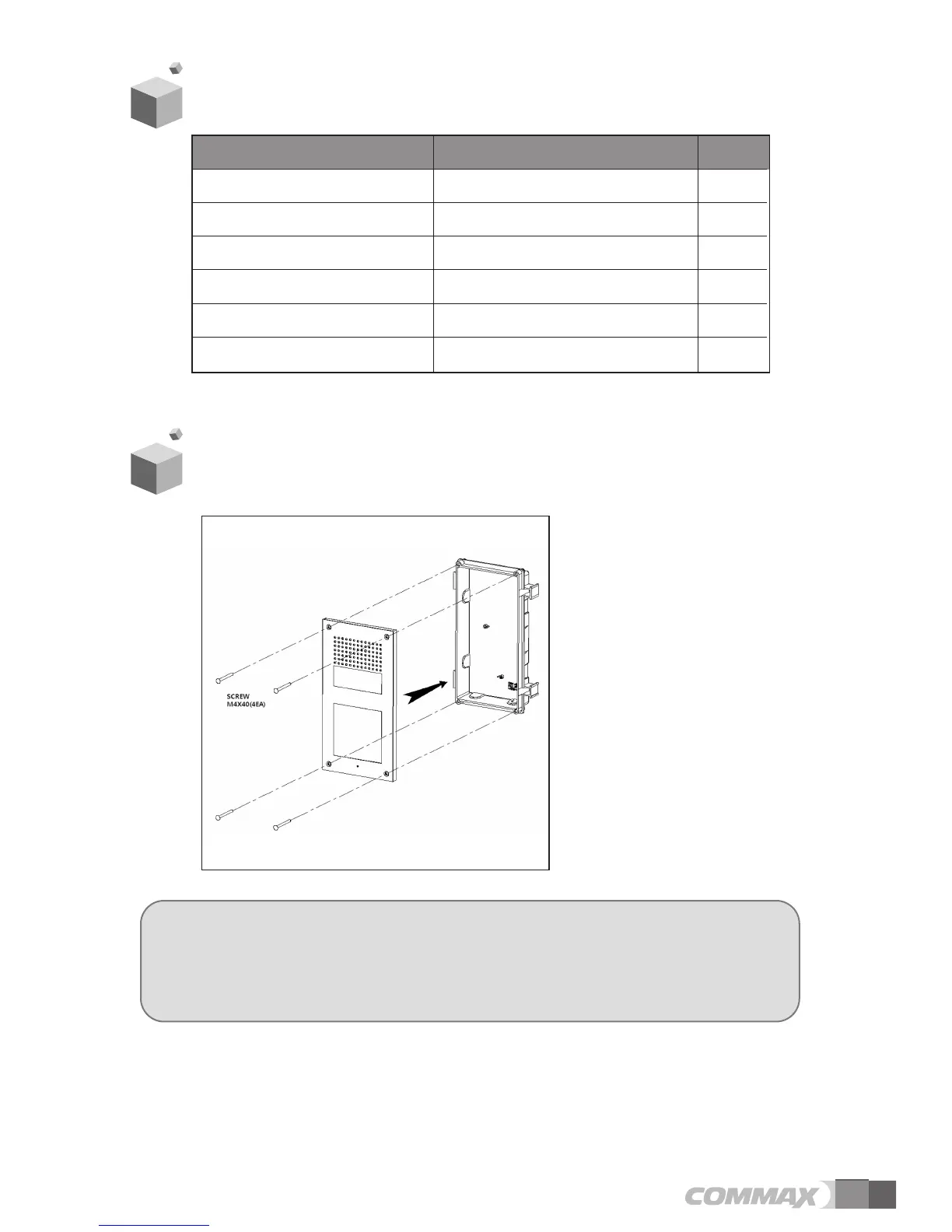

6. Part List
7. Installation
Item Description Q’ty
CONN. 3P(3.96)X250 Wiring Connector 1
CONN. 3PX300 Wiring Connector 1
CONN. 10PX300 Wiring Connector 2
SCREW FHM 4X40 SUS NI Bracket + Flush Mount Bracket 4
WRENCH HEX 2.5# Hex Wrench 1
POWER CORD Adapter Power Cord 1
󱄿󱄿
Caution
1) If installed outdoor, it requires extra molding for water-proof and
rainshield.
2) Recommanded height is pertinent from 1450mm ~ 1500mm

Commax CMP-2BC Specifications

General

Voltage	DC 12V
Power Consumption	232mA ( MAX )
Wiring	6 WIRES (POLARITY, Using with Converter unit)
Communication	DUPLEX
Camera Angle	HORIZONTAL 62°, VERTICAL 46°
Camera Module	C-MOS
Scan Frequency	PAL HORIZONTAL : 15.735KHz/60Hz, VERTICAL : 15, 625KHz/50HZ
Temperature	-20°C ~ +50°C

Weight and Dimensions

Demension	CMP-2BC / 4BC : 130(W) X 315(H) X 38(D)
