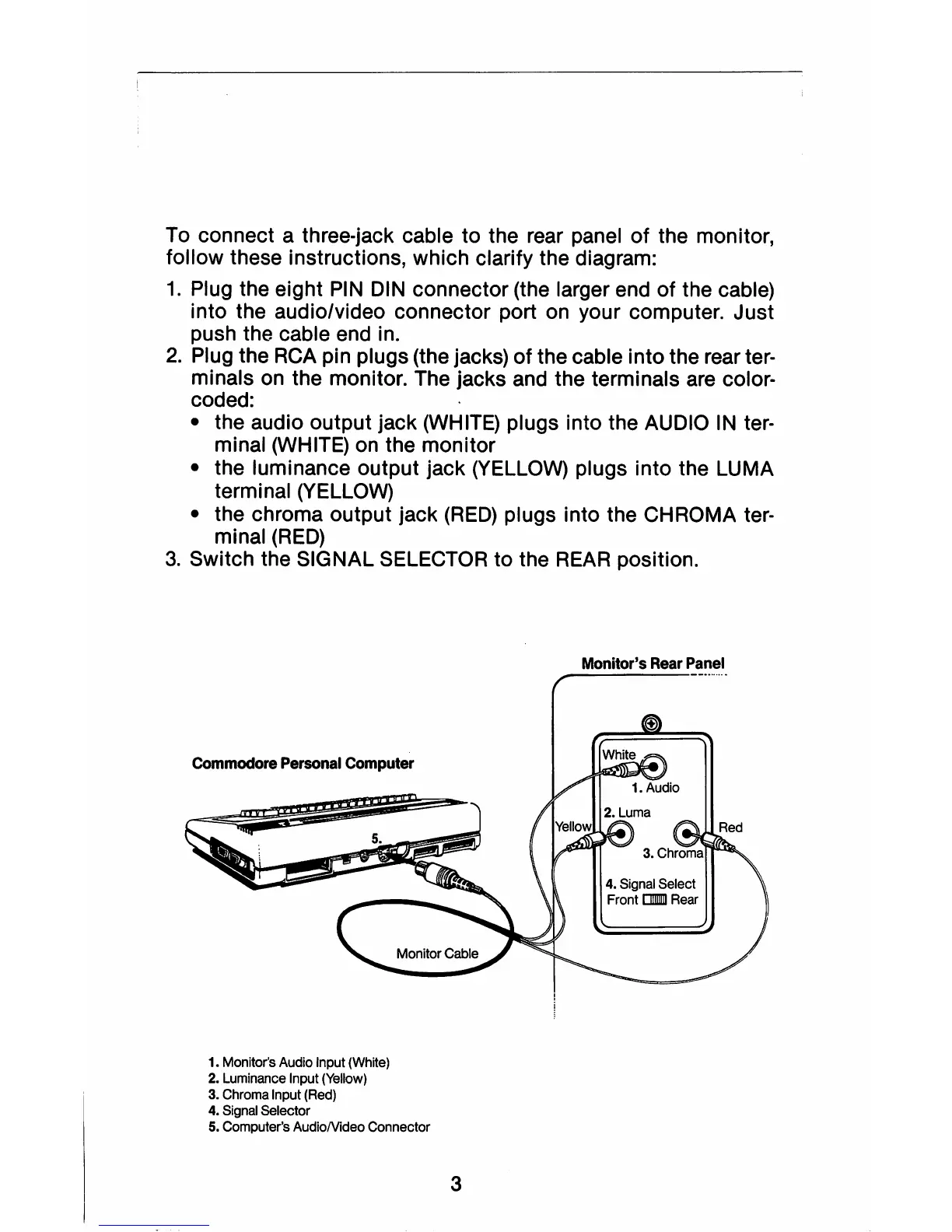

To connect a three-jack cable to the rear panel
of
the monitor,
follow these instructions, which clarify the diagram:
1.
Plug the eight
PIN
DIN
connector (the larger end
of
the cable)
into the audio/video connector port on your computer. Just
push the cable end in.
2.
Plug the
RCA
pin plugs (the jacks)
of
the cable into the rear ter-
minals on the monitor. The jacks and the terminals are color-
coded:
• the audio output jack
(WHITE)
plugs into the AUDIO
IN
ter-
minal (WHITE) on the monitor
• the luminance output jack
(YELLOW)
plugs into the LUMA
terminal (yELLOW)
• the chroma output jack
(RED)
plugs into the CHROMA ter-
minal
(RED)
3.
Switch the SIGNAL SELECTOR to the
REAR
position.
Monitor's
Rear
Panel
Commodore
Personal
Computer
1. Monitor's
Audio
Input
(WhHe)
2.
Luminance
Input
(Yellow)
3.
Chroma
Input
(Red)
4.
Signal
Selector
5.
Computer's Audio/Video Connector
3
