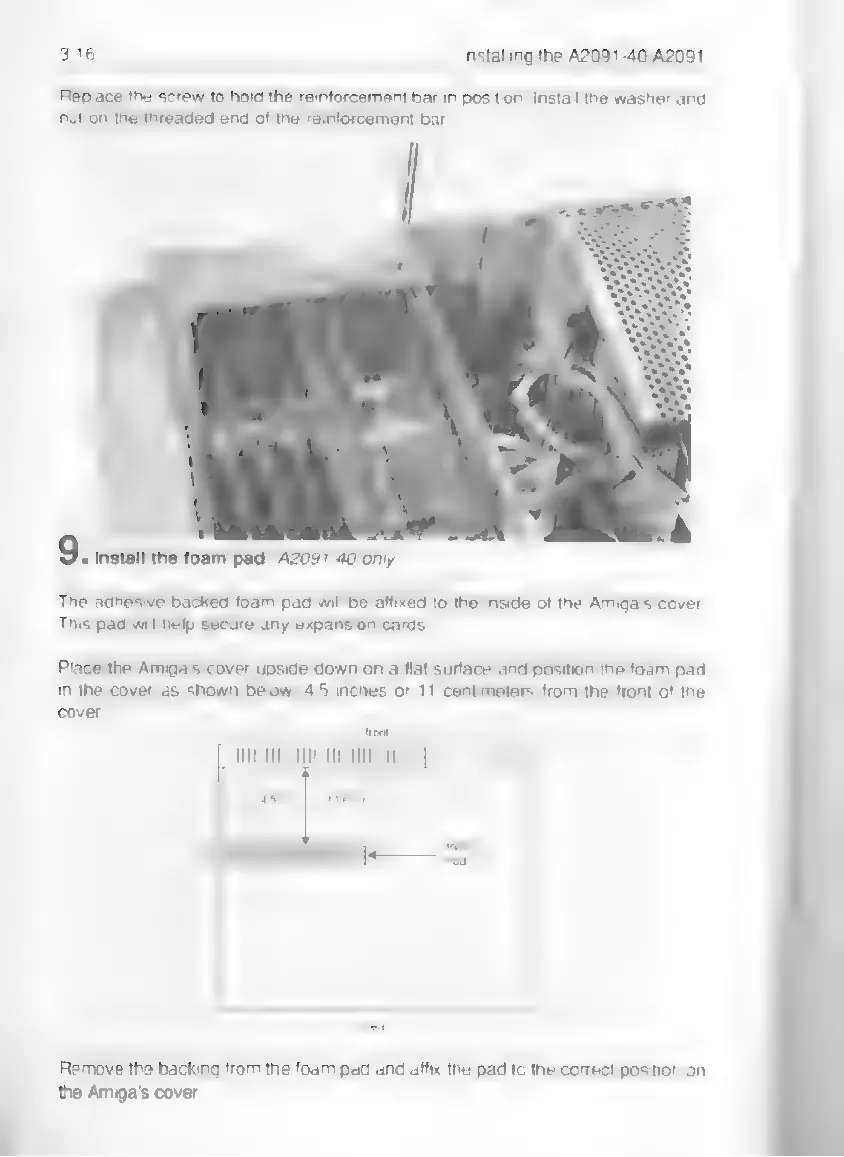

3-16

=

Installing

the

A2091-40/A2091

Replace

the

screw

to

hold

the

reinforcement

bar

in

position.

Install

the

washer

and

nut

on

the

threaded

end

of

the

reinforcement

bar.

9.

instan

the

toam

pad

A2091-40

only

The

adhesive

backed

foam

pad

will

be

affixed

to

the

inside

of

the

Amiga's

cover.

This

pad

will

help

secure

any

expansion

cards,

Place

the

Amiga's

cover

upside

down

on

a

flat

surface

and

position

the

foam

pad

in

the

cover

as

shown

below,

4.5

inches

or

11

centimeters

from

the

front

of

the

cover.

tont

TCT

tear

Remove

the

backing

from

the

foam

pad

and

affix

the

pad

to

the

correct

position

on

the

Amiga's

cover.
