Installing the A2091-40/A2091 34

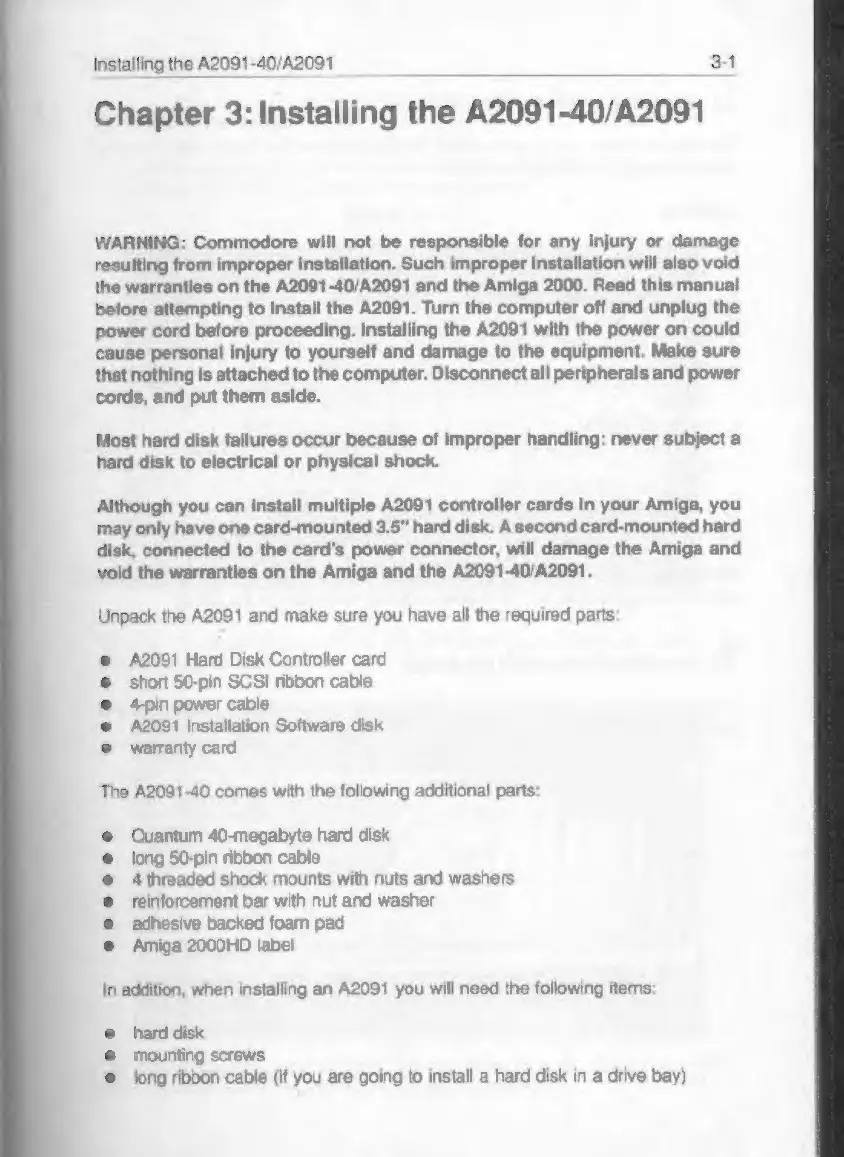

Chapter 3: Installing the A2091-40/A2091
WARNING: Commodore will not be responsible for any injury or damage
resulting from improper installation. Such improper installation will also void
the warranties on the A2091-40/A2091 and the Amiga 2000. Read this manual
before attempting to Install the A2091. Turn the computer off and unplug the
power cord before proceeding. Installing the A2091 with the power on could
cause personal injury to yourself and damage to the equipment. Make sure
that nothing is attached to the computer. Disconnect all peripherals and power
cords, and put them aside.
Most hard disk failures occur because of improper handling: never subject a
hard disk to electrical or physical shock.
Although you can install multiple A2091 controller cards in your Amiga, you
may only have one card-mounted 3.5" hard disk. A second card-mounted hard
disk, connected to the card's power connector, will damage the Amiga and
void the warranties on the Amiga and the A2091-40/A2091.
Unpack the A2091 and make sure you have all the required parts.
A2091 Hard Disk Controller card
short 50-pin SCSI ribbon cable
4-pin power cable
A2091 Installation Software disk
warranty card
The A2091-40 comes with the following additional parts:
Quantum 40-megabyte hard disk
long 50-pin ribbon cable
4 threaded shock mounts with nuts and washers
reinforcement bar with nut and washer
adhesive backed foam pad
Amiga 2000HD label
In addition, when installing an A2091 you will need the following items:
© hard disk
© mounting screws
© long ribbon cable (if you are going to install a hard disk in a drive bay)
