Common CGT-02 Series - Replaceable Transmitters and Encoders

38
c) d)
e) f)

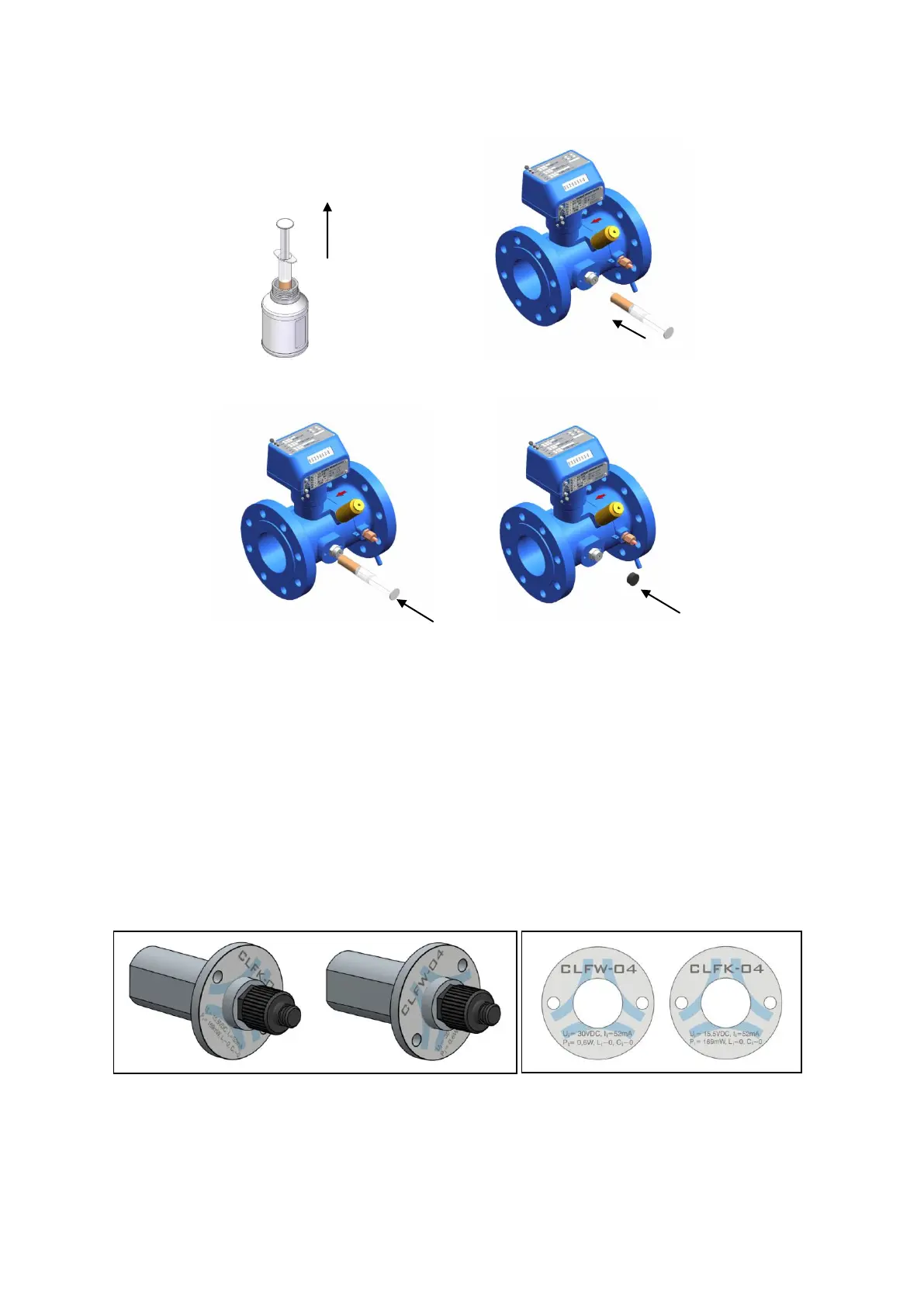

Fig. 20 Lubrication procedure of a gas meter equipped with a lubrication check valve
LF Replaceable transmitters type CLFK-04 or CLFW-04
As the special execution the CGT-02 gas meters can be equipped with index housing
adapter for replaceable transmitters. CLFK-04 (reed contact) or CLFW-04 (Wiegand)
transmitters (rys. 21a) can be, in case of malfunction, replaced without the necessity of
disassembling the index head and removing the initial verification seals or calibration seals.
The permissible power supply parameters of the transmitters are specified on the name plates
(Fig. 21b).
Fig. 21a Replaceable transmitters Fig. 21b Transmitters name plates
