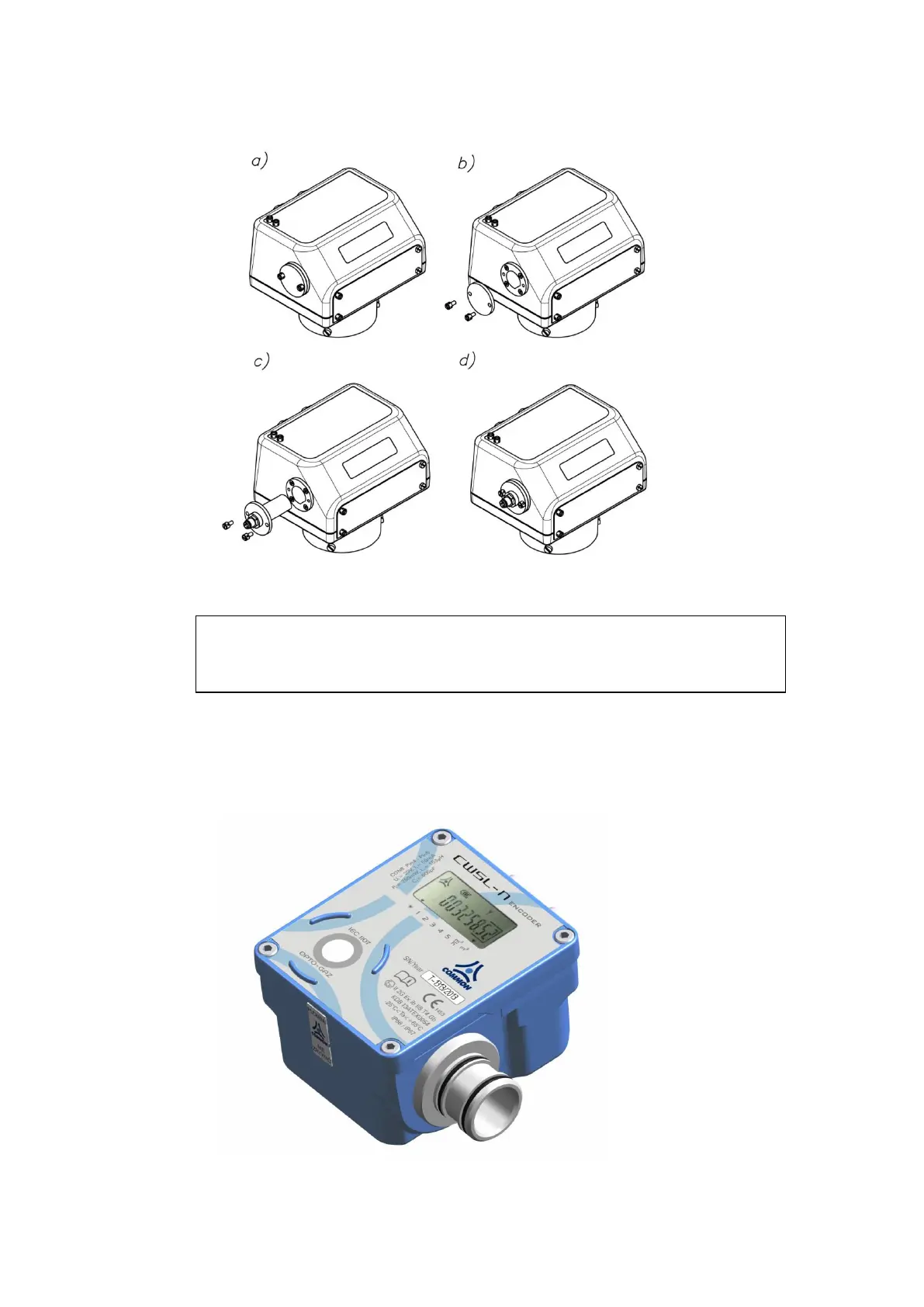

The installation of transmitters is presented on Fig. 22 (a, b, c, d).
Fig. 22. The installation method of replaceable transmitters
CWSL Encoder (option)
CWSL Encoder can be connected to the optional mechanical output. There are 3
versions of (optional) Encoders available: CWSL-N, CWSL-A, CWSL-M (Fig. 23). Data sent
from CWSL-N are equal to data on the index.
Fig. 23 CWSL Encoder adapted for connection with the index of CGT-02 gas meter.
NOTE !
CLFK-04 & CLFW-04 transmitters must not be used interchangeably.
Index head is adapted to one type of transmitter only.
