4. Commissioning
MF0150A9A_prel.docx Manual for ION-M23 SDARS 3-Sector Page 19
4.1.4. Pole Mounting
Standard mounting hardware cannot be used to mount the Remote Unit to a pole, a
column or other similar structures. Additional hardware must be used for this type of
installation. Such a pole-mounting kit could include two threaded rods M8, two
U-beams and mounting material like bolts and nuts.

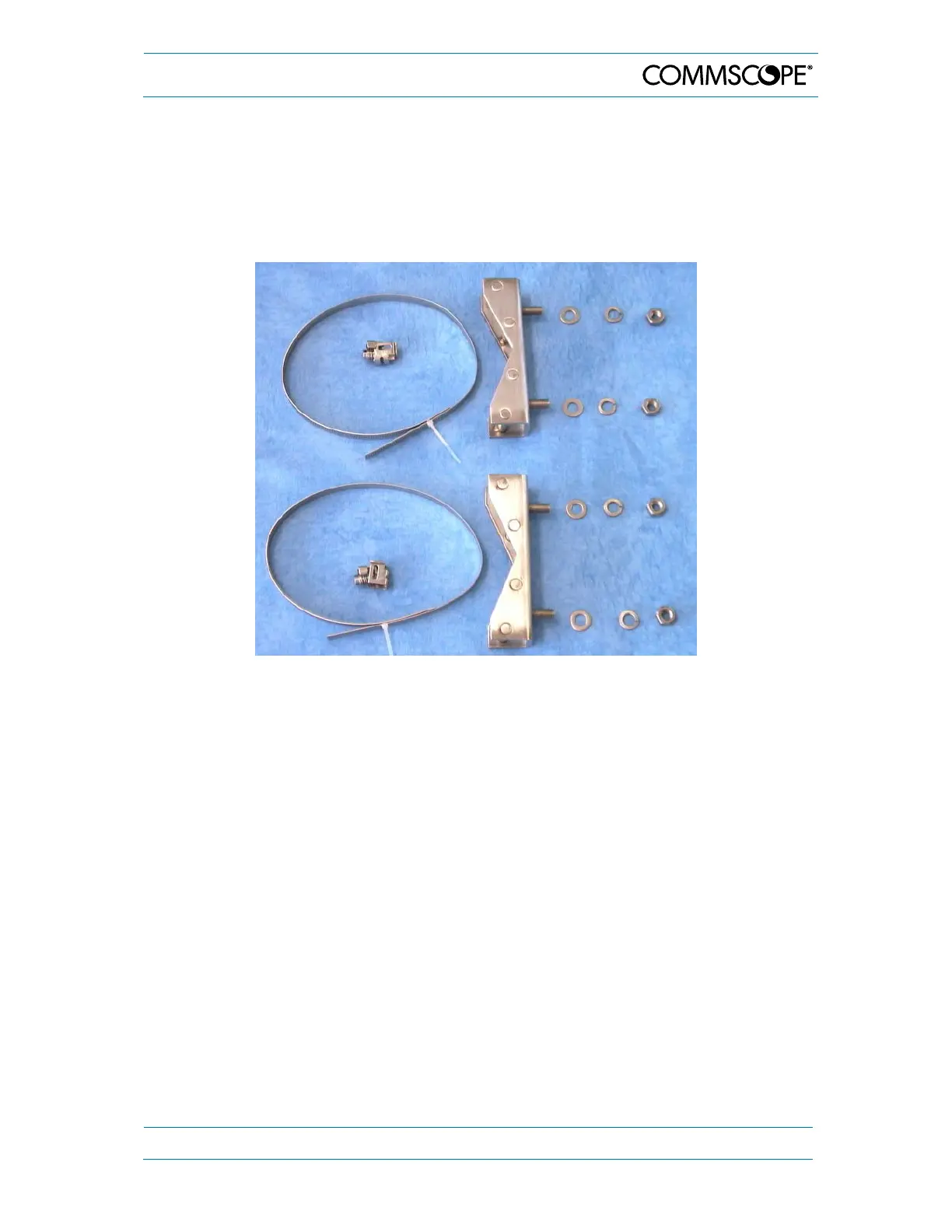

figure 4-2 Pole-mounting kit
Use the screw bands to fasten the two U-beams to the pole as illustrated in figure
4-3 Pole mounting.
Note: When fastening the U-beams make sure that they are installed congruently
and not at an angle to each other. To determine the distance between the
beams refer to chapter 4.1.3 Wall-Mounting Procedure for measurements.
Hang the mounting brackets of the Remote Unit into the threaded bolts of the
U-beam, and fasten them immediately using the washers and nuts.
Ensure that there is free access to the electrical connections as well as to the cabinet.
The approved bending radius of the connected cables must not be exceeded.
