A
Leave packing struts in place during
assembly until directed to remove.
(ommited on subsequent views for clarity)
Page 11 of 30
7722483
UNPACKING
SECTION 4
INSTALLATION
INSTRUCTIONS

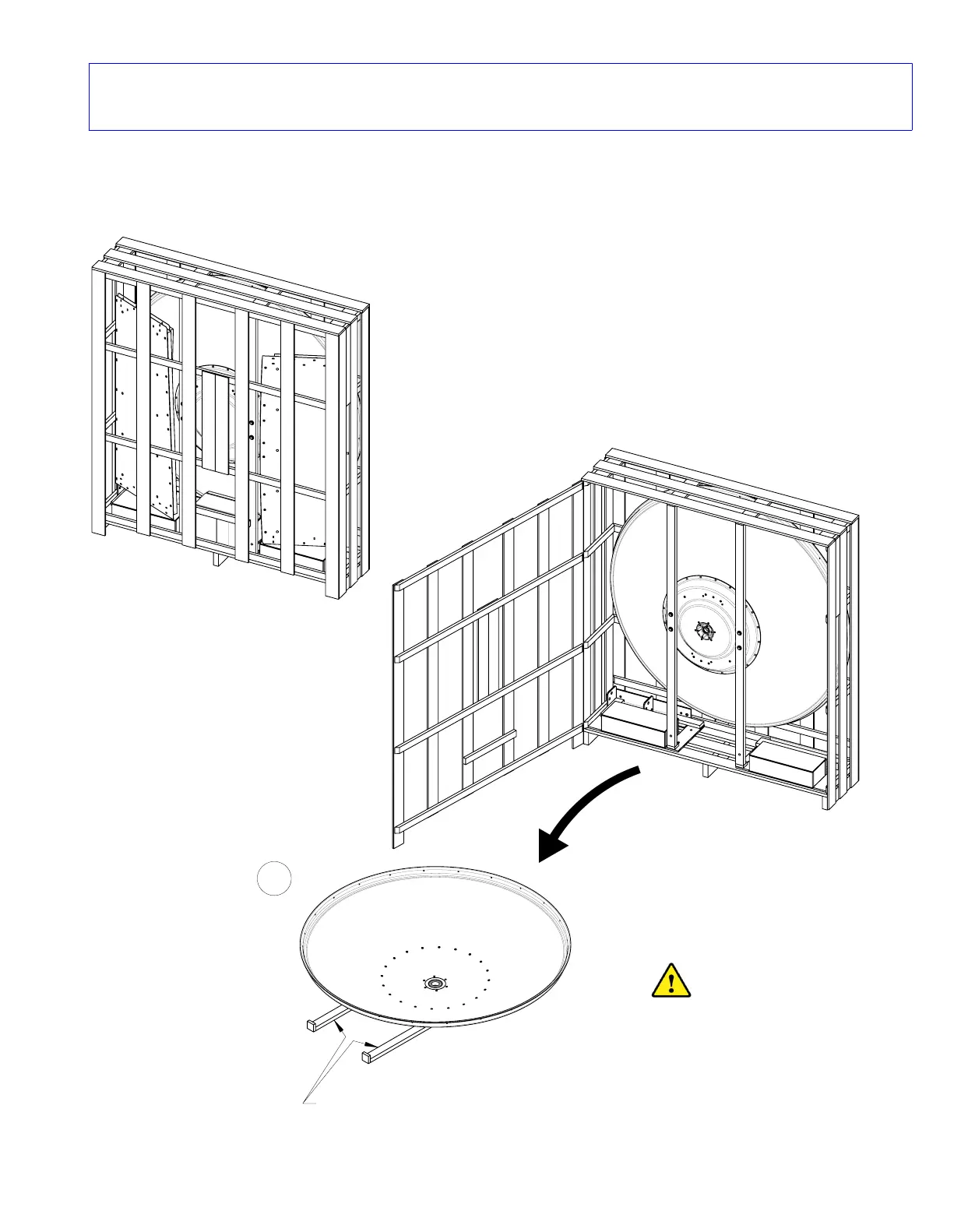

Instructions for unpacking crate:
Wire bound crate:
1. Release wire tabs at one side of the crate.
2. The crate panel will hinge open along the opposite side from the
released wire tabs.
Nailed crate:
1. Carefully remove panel to allow access to shields and reflector struts.
Remove components:
3. Remove shields, strut and integration/omt kit.
4. Remove nails from top of packing strut, the reflector can then be hinged
backwards along the bottom edge and removed from the crate, handle
reflector
CAREFULLY
at all times.
5. Leave reflector attached to the backing struts until instructed to remove.
6. Remove radome and feed.
7. Open kit boxes and remove components as required.
Handle reflector
CAREFULLY at
all times
To Next Page
