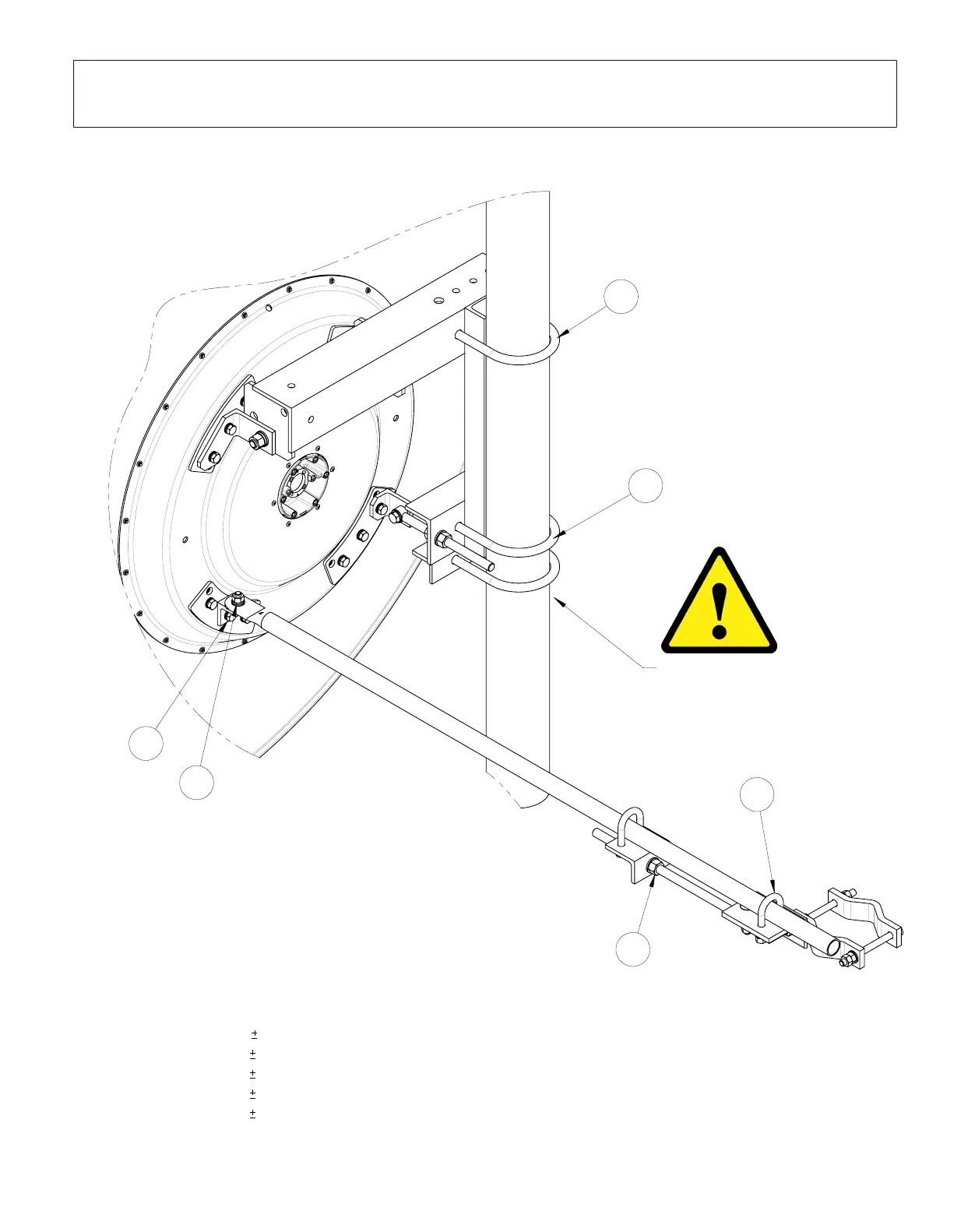

J1
J1
K2b
K2a
Keep safety bracket
fully torqued
at all times.
K1a
K1b
a: Loosen U-bolts J1.
b: Loosen rear U-bolt K2a.
c: Loosen Bolt K1a and Nut K1b.
d:
To adjust azimuth:
loosen 1 nut K2b and adjust with remaining nut K2b.
Upon completion, re-tighten to specified torque.
e: When complete, re-tighten all nuts to torque specified.
J1: 95Nm
5%
K1a: 38Nm
5%
K1b: 60Nm
5%
K2a: 60Nm
5%
K2b: 95Nm
5%
MOUNT ATTACHMENT AND ALIGNMENT
INSTALLATION
INSTRUCTIONS
SECTION 8
7722483
Page 27 of 30
Azimuth Adjustment
