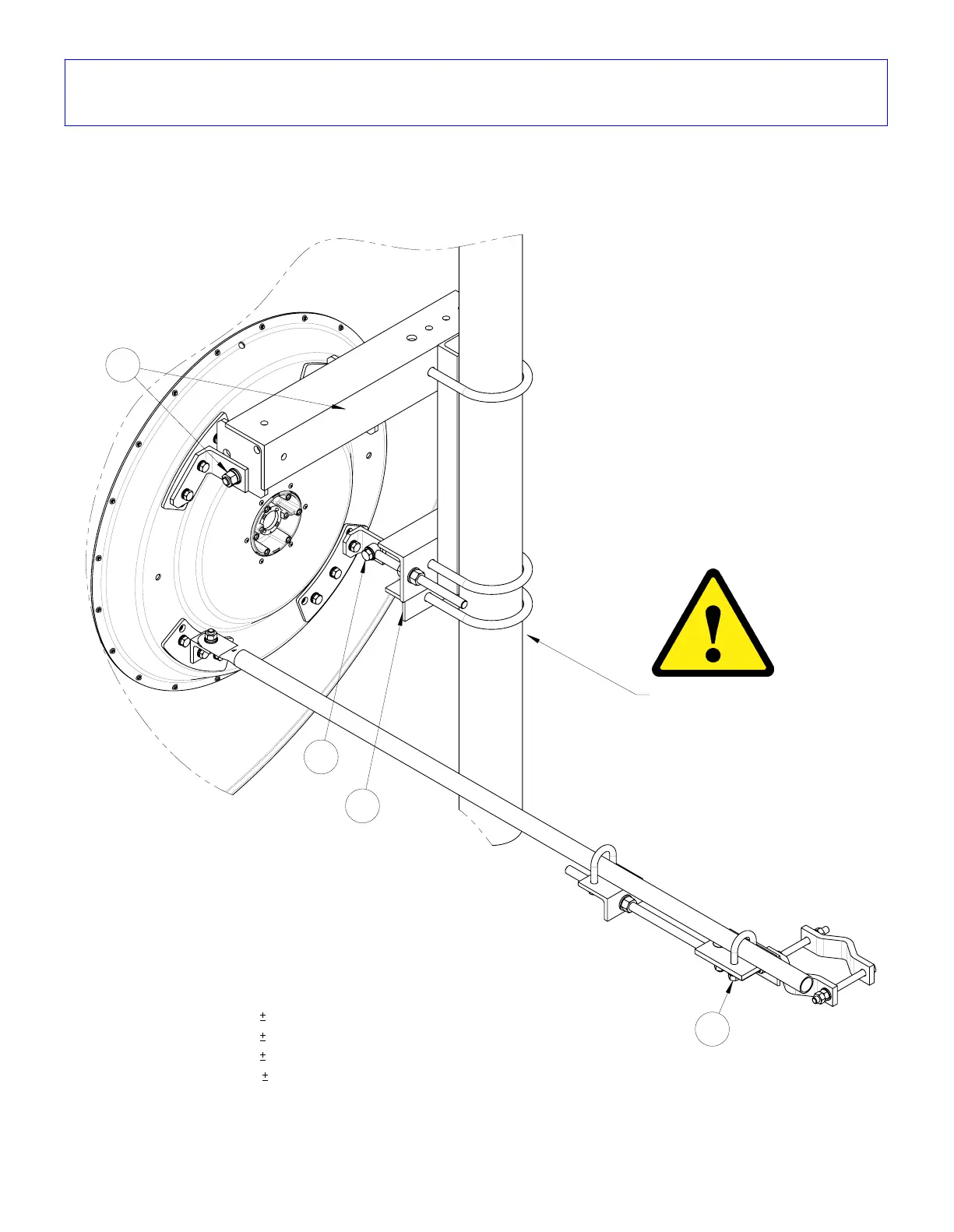

J4
J3b
J3a
K2a
Keep safety bracket
fully torqued
at all times.
a: Loosen nuts J4.
b: Loosen nut J3a.
c: Loosen rear U-bolt K2a.
d:
To adjust elevation:
loosen 1 nut J3b and adjust with remaining nut J3b.
Upon completion, re-tighten to specified torque.
e: When complete, re-tighten all nuts to torque specified.
J4: 95Nm
5%
J3a: 60Nm
5%
J3b: 95Nm
5%
K2a: 60Nm
5%
MOUNT ATTACHMENT AND ALIGNMENT
INSTALLATION
INSTRUCTIONS
SECTION 8
7722483
Page 28 of 30
Elevation Adjustment
