H1
Flat
washers
Lock
washer
Threaded inserts
for radome
attachment
Drain hole
Reflector
attachment
slots
Drain hole

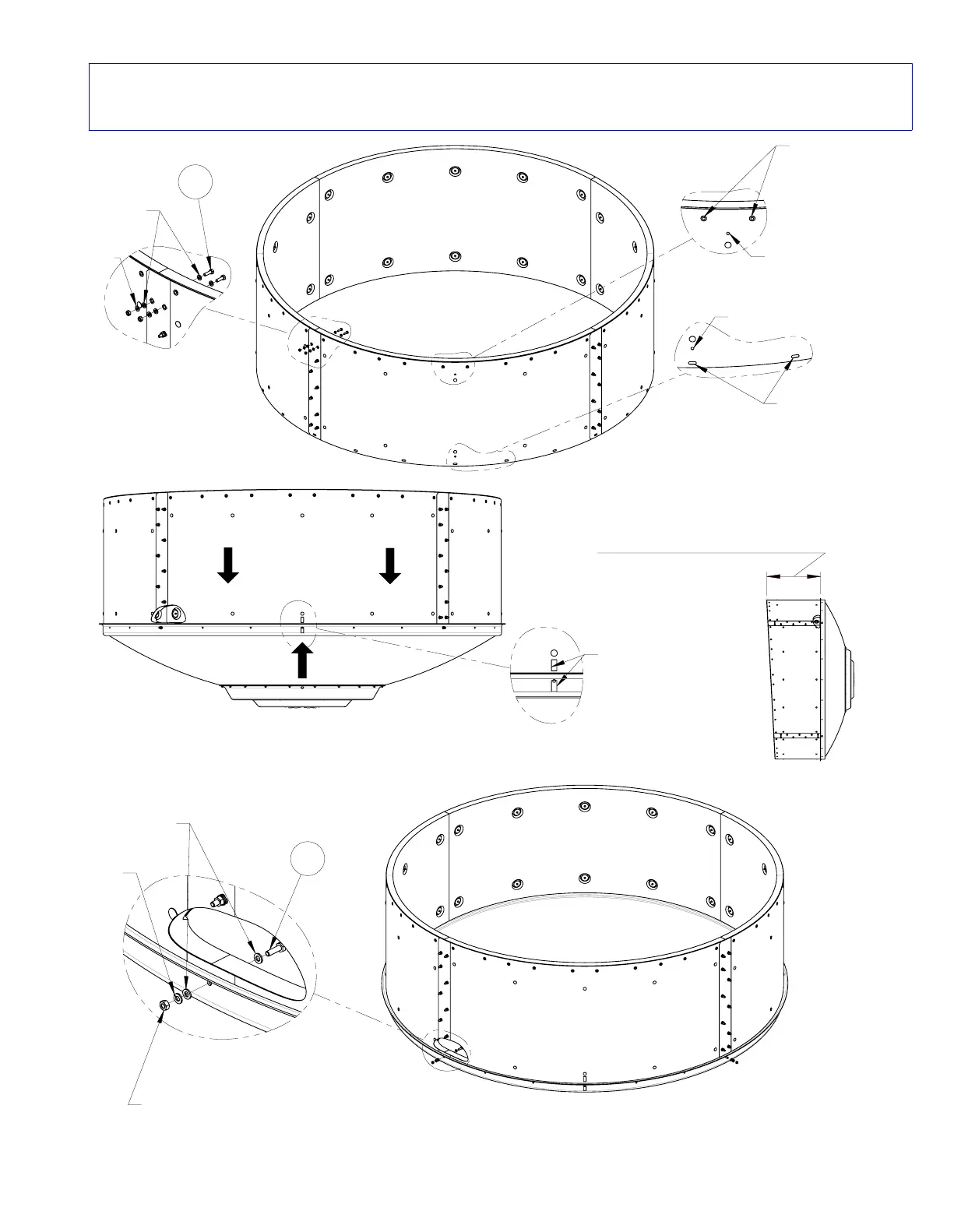

Insert shield in to reflector so that attachment slots
align with rim holes in reflector
Ensure highest side of
shield set is aligned to
top of antenna
Align shield slots and reflector
holes to receive a bolt.
Repeat at 90 degree intervals.
Align red tape on
reflector with
red tape on shield
Fit loosely with flat washers,
lock washer and nut in 4
positions as directed then tighten.
H1
Flat
washers
Lock
washer
Page 13 of 30
7722483
SECTION 5
INSTALLATION
INSTRUCTIONS
ASSEMBLY OF REFLECTOR TO SHIELD
