REFER TO SAFETY NOTE ON PAGE 5
D
Align flat of feed hub to
red tape of reflector
Apply grease to
surfaces indicated
Ensure flat of feed hub is
assembled in a horiziontal (top)
position and aligned with red
tape of reflector
Page 16 of 30
7722483
SECTION 6
INSTALLATION
INSTRUCTIONS

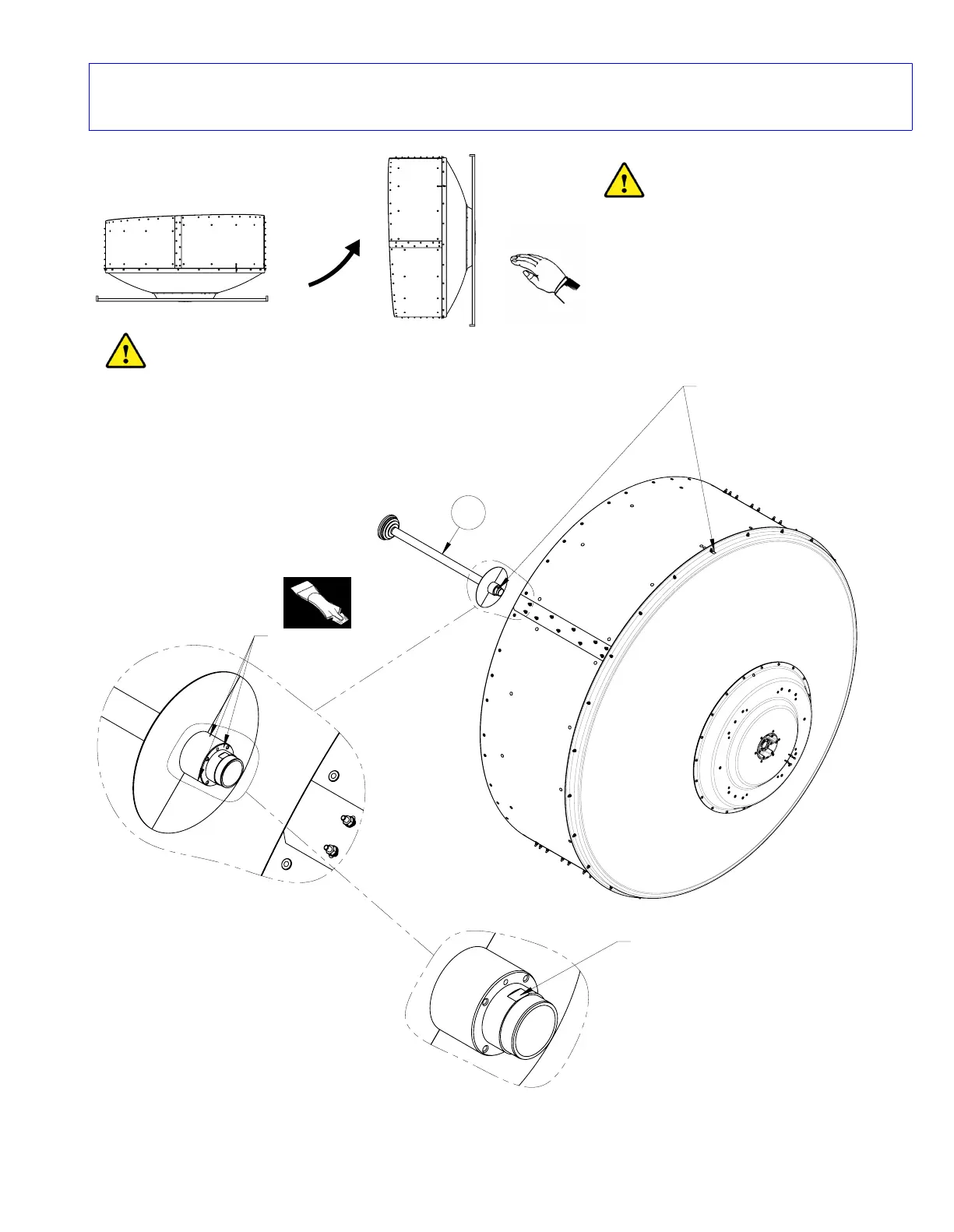

FEED ATTACHMENT AND ALIGNMENT
Prior to feed attachment, carefully
tilt antenna upright using packing
struts and hold in position.
Do not apply excesive weight to
antennas assembly.
To Next Page
